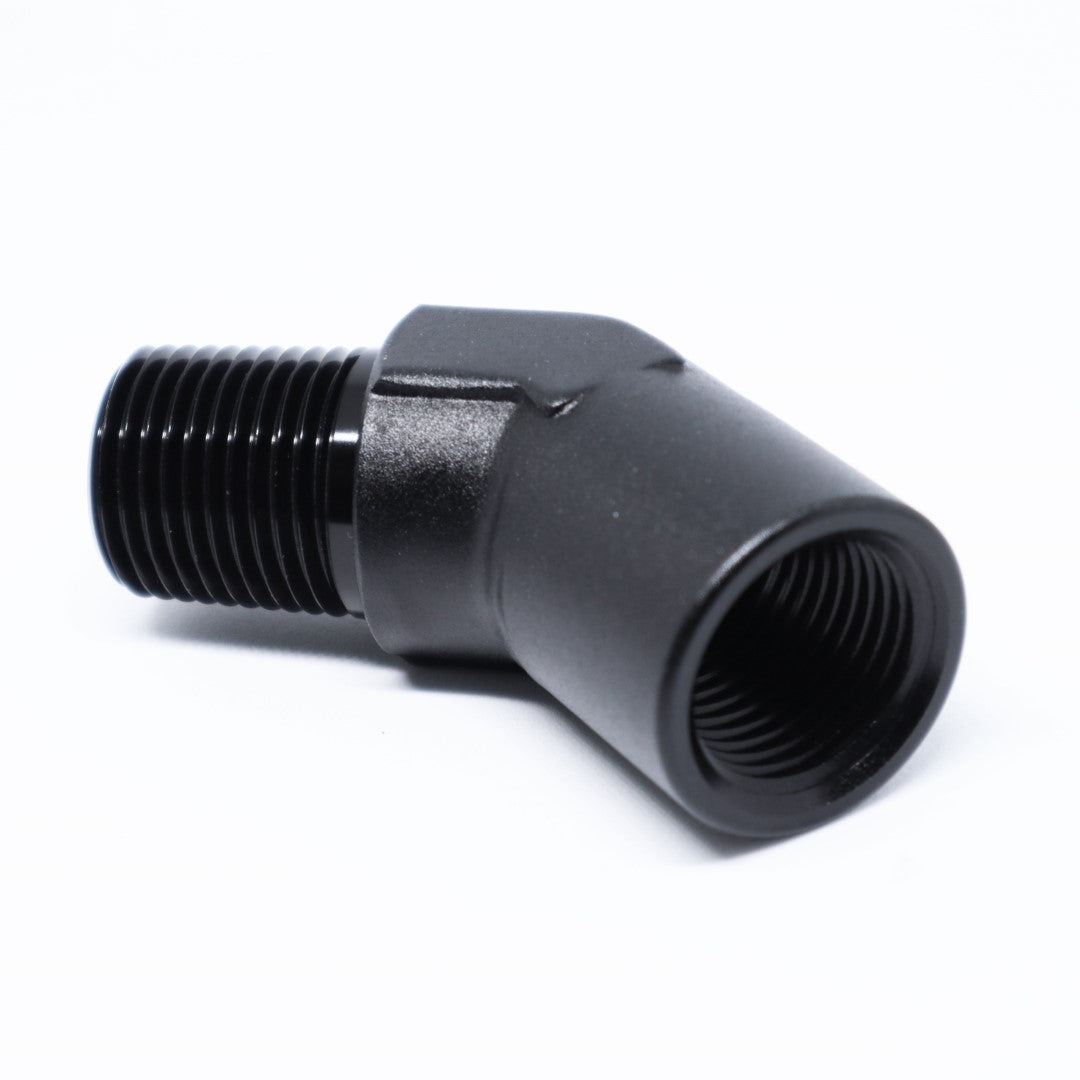

NPT Male to NPT Female Adapter, 45 Degree

Sometimes 90 degrees is a wall and straight is a collision; 45 is the answer in between.

Sensor clearance problems rarely come in right angles. A sender needs to lean away from a runner, a gauge needs a tilt toward the driver, a fitting needs half a step of separation from its neighbor. The Finish Line Factory NPT Male to NPT Female Adapter, 45 Degree splits the difference, CNC machined from 6061 aluminum in matched 1/8" through 1/2" NPT. Male end in the port, your hardware in the female end, everything leaning exactly as far as it needs to and no further.

Benefits

• The sender leans clear of the manifold without pointing at the ground
• Gauge faces tilt toward your eye line instead of straight up at the hood
• Tapers engage smooth and true, tightening with confidence-building resistance
• Neighboring fittings on a crowded regulator stop knocking elbows
• The angle looks deliberate on the finished build, because it is

Features

• CNC machined 6061 aluminum
• Male NPT to female NPT with a fixed 45 degree offset
• Matched sizes: 1/8", 1/4", 3/8", 1/2" NPT
• Tapered thread sealing at both joints
• Handles fuel, oil, coolant, and air service
• Single adapter per order in your selected size

The Details

Everything true of a 90 degree street elbow applies at 45, just with gentler geometry. Both connections are tapered pipe threads, so both get sealant with the first thread left bare, and the female joint gets assembled with a backup wrench on the adapter body so torquing the gauge doesn't rotate the adapter in its port. Final aim depends on where the taper stops, which gives you most of a turn of working adjustment; thread sealant keeps the joint tight across that window. Where the 45 beats the 90 is leverage and length: it holds the sender closer to the port, which means less mass hanging on a cantilever in a vibrating engine bay, and vibration is what eventually cracks sender bodies and wobbles readings. If a heavy sender still sits far off the port after adapting, a remote mount and a short hose run is the more durable answer. Aluminum construction keeps the stack light and plays nicely with the aluminum regulators and housings it usually threads into.

Kit Includes

• 1x NPT Male to NPT Female Adapter, 45 Degree (size per your selection)

Applications

• NPT sizes: 1/8", 1/4", 3/8", 1/2", male to female, same size through
• Common uses: angling pressure and temperature senders for clearance, tilting gauges toward the driver, spacing fittings on regulators and fuel pumps, easing wire and hose reach to sensors
• Accepts any male NPT gauge, sender, or fitting in the matching size, including FLF AN to NPT adapters
