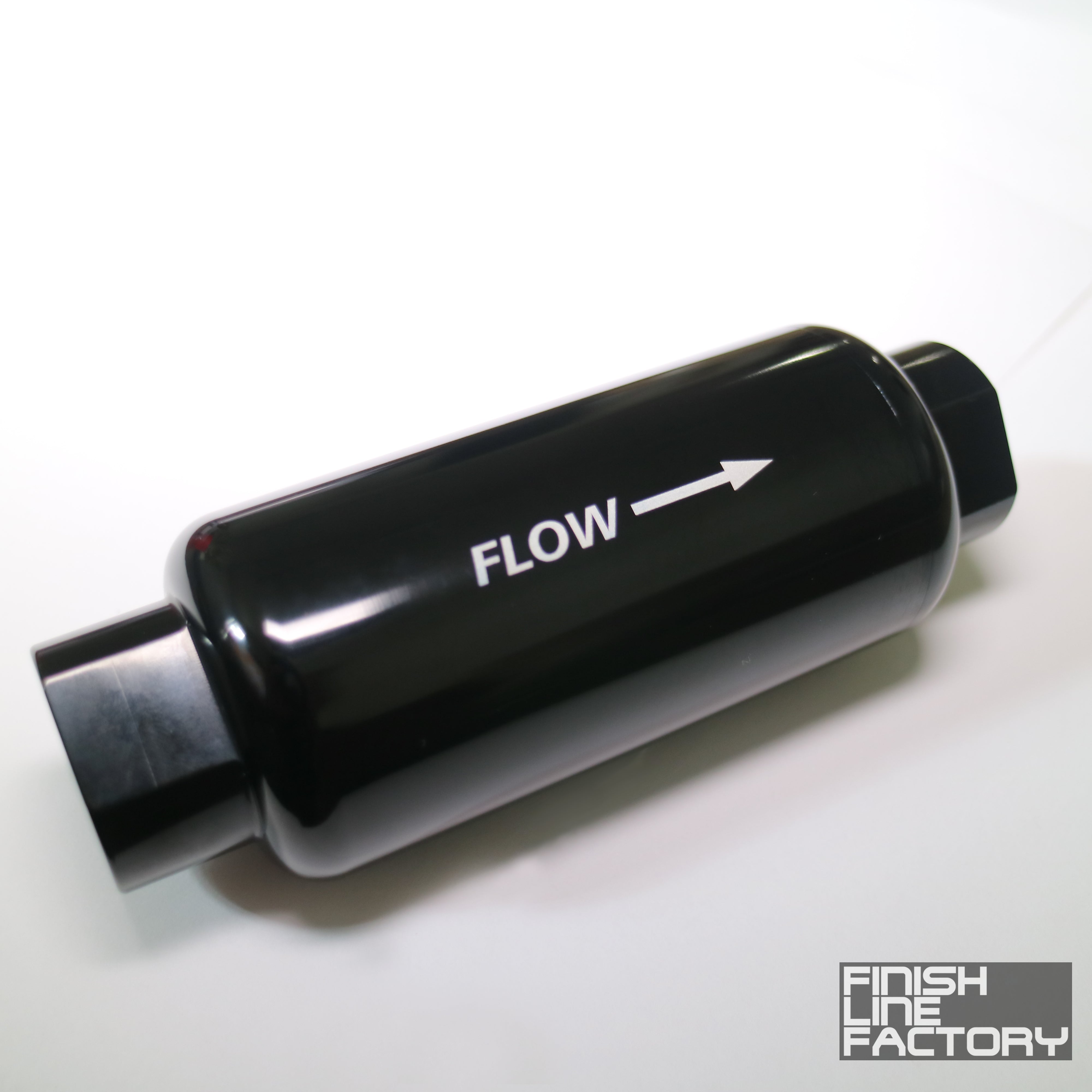

FLF High Flow Fuel Filter

Vendor:Finish Line Factory

High Flow Fuel Filter

SKU: FILT-HF-10ORB-10MIC

Size
Size: 10 Micron
Size 2
Size 2: 10 ORB
$98.19
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
nexus software programmer

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

The pump moves the fuel; the filter decides what arrives with it.

High-volume fuel systems need filtration that neither chokes flow nor hides its condition. The Finish Line Factory High Flow Fuel Filter delivers both: a high flow inline design usable before or after the pump, with stainless steel mesh elements in 10 Micron, 100 Micron, 30 Micron and 10 ORB, 12 ORB ORB ports, easily disassembled for inspection and cleaning. 100 micron pre-pump, 30 micron post-pump, protection at every stage.

Benefits

  • Big pump flow passes without the filter becoming the restriction
  • Disassembly for inspection takes minutes and tells the truth
  • ORB ports plumb straight into AN systems with standard adapters
  • Fuel pressure stays flat because the filter stays clean and cleanable

Features

  • High flow inline design for pre- or post-pump installation
  • Stainless steel mesh elements (replaceable)
  • Ratings: 10 Micron, 100 Micron, 30 Micron
  • Ports: 10 ORB, 12 ORB ORB
  • Easily disassembled for inspection and cleaning
  • Sold as a complete filter

The Details

Filtration strategy follows position: ahead of the pump, 100 micron mesh stops tank debris from eating impellers while flowing freely at suction; after the pump, 30 micron protects injectors under pressure where finer media costs less flow. This housing serves either seat, and its serviceability is the long-game feature, since a filter that opens for inspection turns fuel system diagnosis from guesswork into evidence. ORB ports seal on o-rings at modest torque, pairing with FLF ORB to AN adapters for the lines, and the mounting bracket carries the mass so fittings never do. Log what the mesh catches; a fuel system confesses through its filter.

Kit Includes

  • 1x High Flow Fuel Filter (size per your selection)

Applications

  • Ratings: 10 Micron, 100 Micron, 30 Micron; ports: 10 ORB, 12 ORB ORB
  • Common uses: E85 and high-volume EFI fuel systems, pre-pump and post-pump filtration, surge tank plumbing
  • Pairs with FLF ORB to AN adapters, replacement elements, and the Fuel Filter Mounting Bracket
