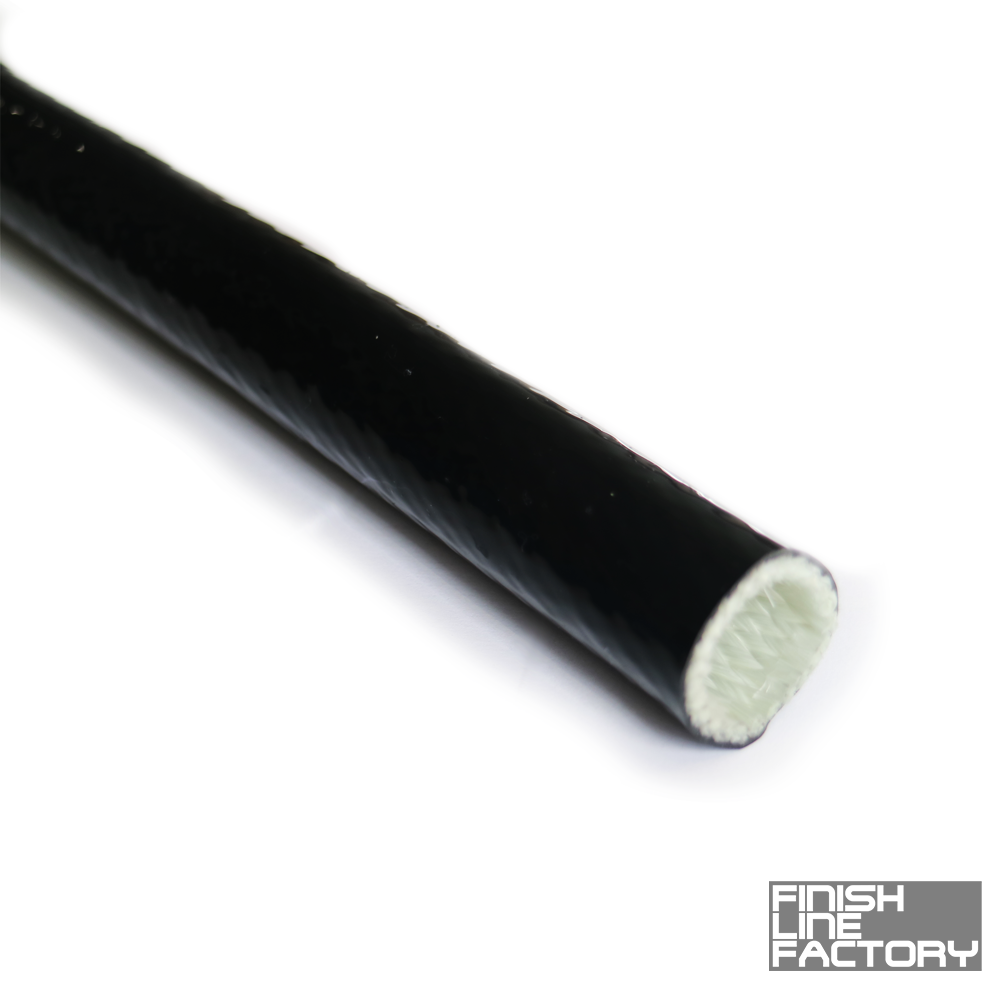

Extreme Heat Protection Sleeve (5 Foot Roll)

Anything routed near the hot side is on a clock; insulation stops it.

Hoses and wiring near heat sources cook slowly and fail suddenly. The Finish Line Factory Extreme Heat Protection Sleeve (5 Foot Roll) encloses them: heat-resistant and flame-resistant sleeve efficiently insulating whatever runs inside, in 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm (0.5" ID, 0.6" ID, 0.75" ID, 1" ID, 1.2" ID, 1.5" ID) IDs. Perfect for turbo cars protecting oil drains, wastegate hoses, and harness runs near the hot side. 5 feet of not-worrying.

Benefits

• Lines near the turbo stop radiating that worrying warmth to the touch
• The sleeve slides over finished hoses and stays flexible on bends
• Wiring near the manifold stops tanning toward brittle
• One roll sleeves the whole hot-side neighborhood

Features

• Heat-resistant and flame-resistant sleeve construction
• IDs: 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm (0.5" ID, 0.6" ID, 0.75" ID, 1" ID, 1.2" ID, 1.5" ID)
• Roll length: 5 feet
• Efficiently insulates hoses and wiring from heat sources
• Ideal near turbos: oil drains, wastegate pressure hoses, harnesses
• Finish ends with FLF Heat Shrink Sealing Tube

The Details

Heat kills lines by degrees: rubber hardens, braid discolors, insulation embrittles, all before anything visibly fails. Sleeving interrupts the exposure, wrapping the line in an insulating barrier that takes the radiant and convective load itself. Size the ID over the line's OD including fittings where the sleeve must pass them, cut cleanly, and seal the ends with heat shrink sealing tube so hot air cannot creep up the annulus, the detail that separates insulated from decorated. Turbo oil drains, wastegate reference lines, starter wiring past headers, and fuel lines crossing hot zones are the standard patients. The roll format sleeves by the project, not the piece.

Kit Includes

• 1x Extreme Heat Protection Sleeve (5 Foot Roll) (size per your selection)

Applications

• IDs: 12 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm (0.5" ID, 0.6" ID, 0.75" ID, 1" ID, 1.2" ID, 1.5" ID); length: 5 feet
• Common uses: turbo oil drain and feed lines, wastegate hoses, wiring near manifolds, fuel lines crossing heat zones
• Pairs with FLF Heat Shrink Sealing Tube and Cutting Guide
