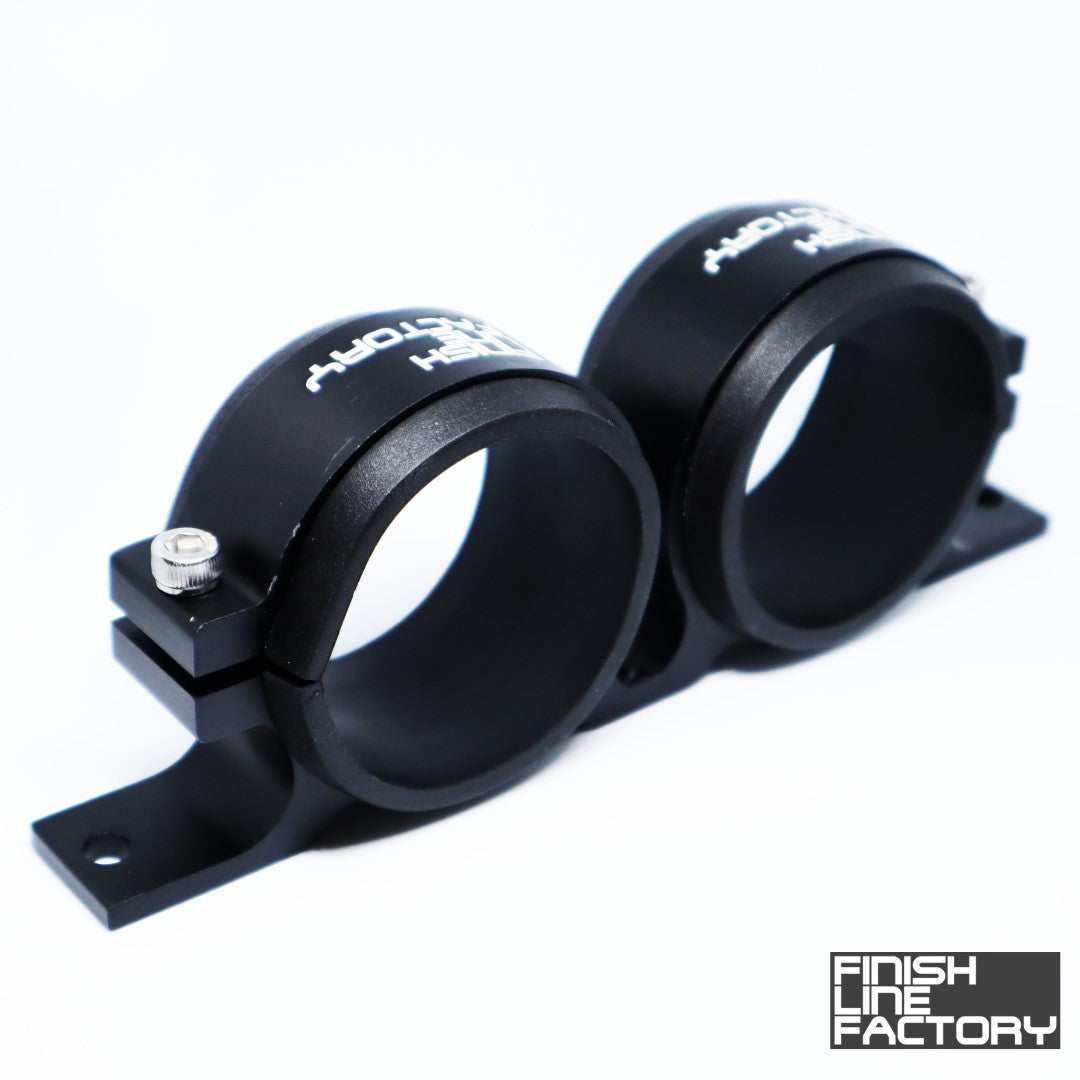

EFI Dual Fuel Pump Bracket

Two external pumps double the flow and double the mounting problem; this solves the second half.

External fuel pumps are dense little masses that vibrate for a living. The Finish Line Factory EFI Dual Fuel Pump Bracket anchors a pair of them: high-quality 6061 aluminum with rubber pads securing both pumps in place, securely, sized for ID 61mm bodies. Pumps mounted like the fuel system depends on it, because it does.

Benefits

• Pump vibration dies in the rubber instead of ringing through the chassis
• Both pumps sit aligned and level, plumbing them becomes symmetrical
• Fittings connect to a pump that holds still
• The buzz of pump duty fades to a hum through the isolation

Features

• High-quality 6061 aluminum construction with rubber isolation pads
• Holds two external pumps, ID 61mm
• Common external EFI pump compatibility
• Anchors pumps to chassis or panel
• Sold individually

The Details

External pumps ask two things of a mount: hold firm and isolate. Rigid mounting without rubber transmits the pump's drone into the chassis as a soundtrack; soft mounting without clamp lets the mass work its fittings loose. The dual bracket answers both for twin-pump systems, 6061 aluminum carrying the load and rubber pads isolating each 61mm body, with the pumps held parallel so feed plumbing and check-valve isolation stay clean. Mount low and near the tank, since pumps push far better than they pull, keep wiring supported off the fittings, and torque clamp hardware to snug rather than crush; the rubber does its job under compression, not strangulation.

Kit Includes

• 1x EFI Dual Fuel Pump Bracket (size per your selection)

Applications

• Fits pairs of ID 61mm pumps
• Common uses: Bosch 044-pattern external pumps, surge tank outputs, trunk and underbody pump mounting, twin-pump E85 systems
• Pairs with FLF check valves and fuel plumbing
