Cushioned P-Clamp

Vibration never sleeps, and unsecured lines are how it entertains itself.

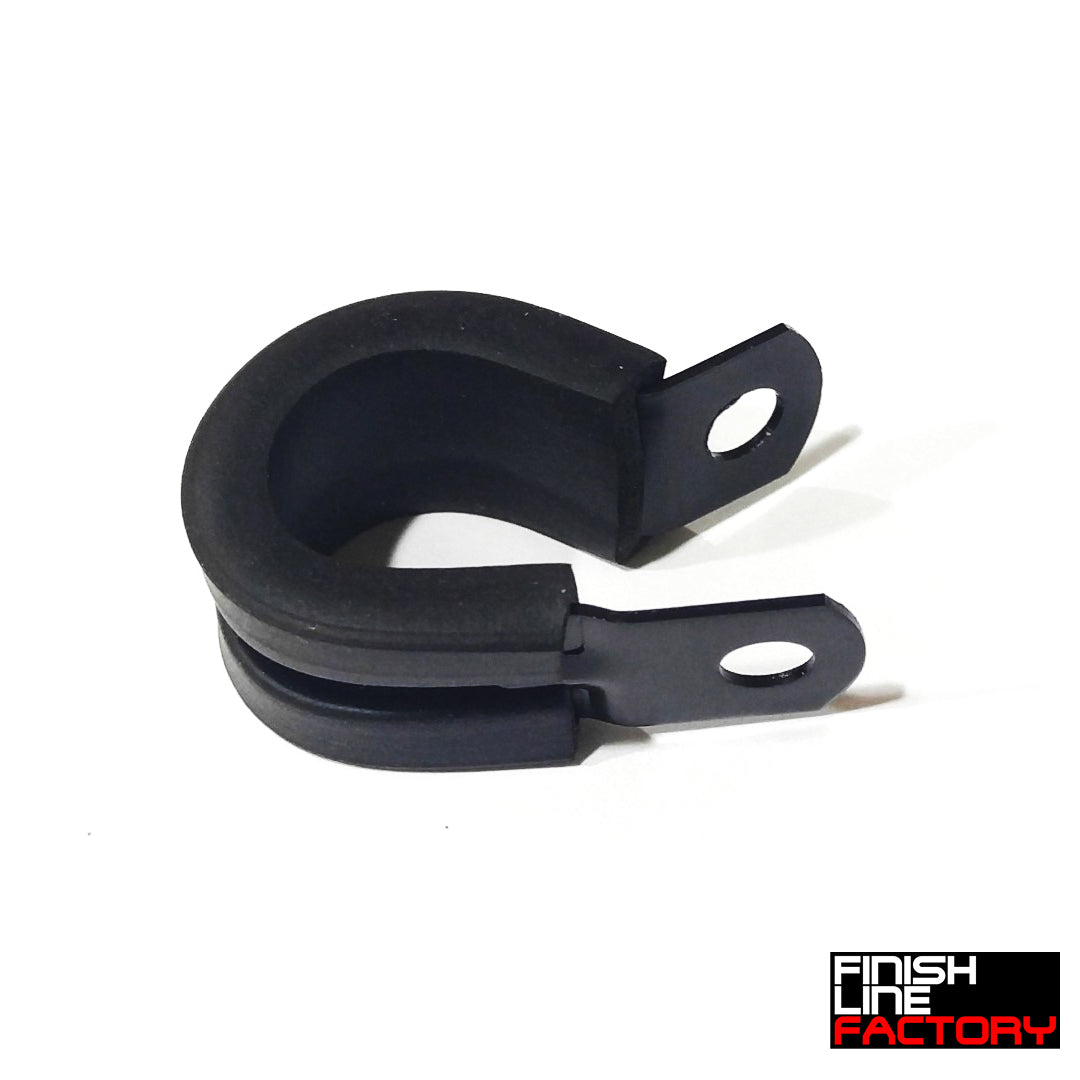

Hoses, cables, and wiring left to their own devices chafe, rattle, and fatigue. The Finish Line Factory Cushioned P Clamp pins them down kindly: a flexible corrosion-resistant steel body lined with rubber insulation, in IDs from 06.4 mm ID, 07.9 mm ID, 09.5 mm ID, 12.7 mm ID, 14.3 mm ID, 15.9 mm ID, 19.1 mm ID, 25.4 mm ID, 28.6 mm ID, 31.8 mm ID, 38.1 mm ID, 4.8 mm ID, 44.5 mm ID, 47.6 mm ID, 50.8 mm ID. The rubber protects the hose lining and cable insulation; the steel holds the route. Classic hardware, done properly.

Benefits

• Lines stop tapping out their mileage against the chassis
• The rubber liner grips without biting into braid or insulation
• One bolt per clamp turns a loose run into a planned route
• Vibration-heavy zones stop being where hoses go to die

Features

• Flexible corrosion-resistant steel body
• Rubber insulation lining protecting hose and cable surfaces
• ID sizes: 06.4 mm ID, 07.9 mm ID, 09.5 mm ID, 12.7 mm ID, 14.3 mm ID, 15.9 mm ID, 19.1 mm ID, 25.4 mm ID, 28.6 mm ID, 31.8 mm ID, 38.1 mm ID, 4.8 mm ID, 44.5 mm ID, 47.6 mm ID, 50.8 mm ID
• Nominal sizes: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 3/4", 1", 11/8", 11/4", 11/2", 3/16", 13/4", 17/8", 2"
• Secures hose, cable, and wiring in vibration-prone locations
• Sold individually

The Details

A P-clamp is support engineering in miniature: the loop carries the line, the tab takes one fastener, and the cushion keeps steel and hose from grinding a relationship. Size the ID to the line's actual OD, snug rather than crushing, so braided hose seats into the rubber without deforming; a clamp two sizes big is just a rattle with extra steps. Space supports every foot or so on long runs, add one near every mass like a filter, and place clamps where lines cross structure, because that intersection is where chafe begins. Corrosion-resistant steel means underbody and engine bay duty without the clamp becoming the first casualty.

Kit Includes

• 1x Cushioned P-Clamp (size per your selection)

Applications

• IDs: 06.4 mm ID, 07.9 mm ID, 09.5 mm ID, 12.7 mm ID, 14.3 mm ID, 15.9 mm ID, 19.1 mm ID, 25.4 mm ID, 28.6 mm ID, 31.8 mm ID, 38.1 mm ID, 4.8 mm ID, 44.5 mm ID, 47.6 mm ID, 50.8 mm ID (1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 3/4", 1", 11/8", 11/4", 11/2", 3/16", 13/4", 17/8", 2" nominal)
• Common uses: securing fuel and oil lines along chassis, wiring loom support, brake and clutch line routing, catch can plumbing
• Pairs with braided hose, hardline, and cable runs
