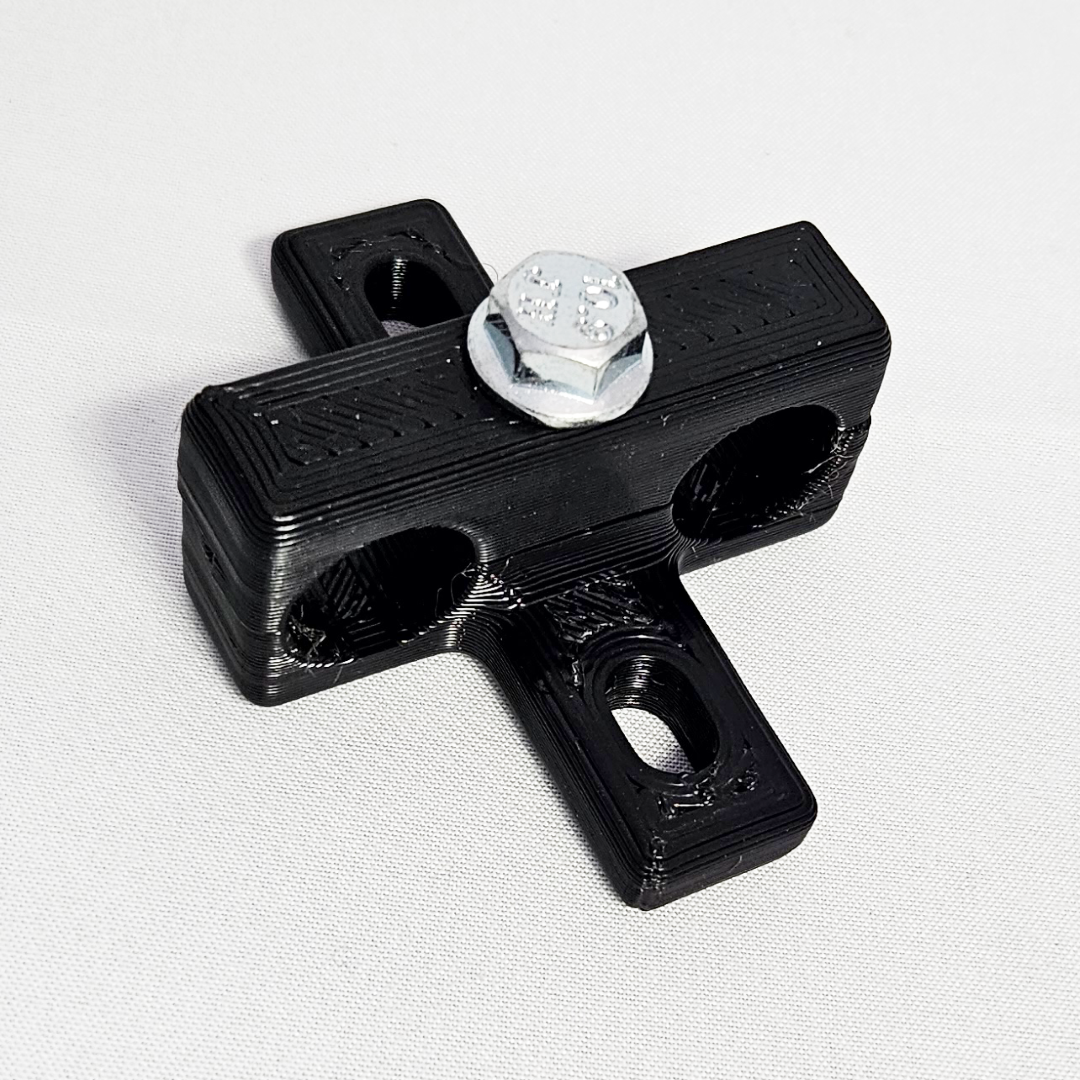

Cross-Mount Dual Hose Separator

Two mounting tabs, two hoses, tight spaces: the separator that bolts down sideways.

Separators organize lines; mountable separators anchor them. The Finish Line Factory Cross-Mount Dual Hose Separator is CAD-designed and 3D-printed from an extremely durable, temperature-resistant polymer with brass thread inserts for long service life, with two mounting tabs for side-by-side support in tight spaces using self-tapping bolts or rivnut inserts, plus anti-spin design keeping the halves aligned during installation, in sizes 14 mm, 17 mm, 20 mm, 11 mm, 13 mm, 16.0 mm. Routing your hoses, and fixing them where they belong.

Benefits

• Hose pairs anchor to the chassis instead of floating between supports
• The dual tabs mount flat in spots a single-tab bracket cannot reach
• Anti-spin keeps the halves square while you tighten, no third hand needed
• Brass inserts survive service cycles that strip printed threads

Features

• Precision 3D-printed from durable, temperature-resistant polymer
• Brass thread inserts for long service life
• Dual mounting tabs; anti-spin aligned halves
• Sizes: 14 mm, 17 mm, 20 mm, 11 mm, 13 mm, 16.0 mm
• Supports two hoses side by side
• Sold individually

The Details

Separation and support are different jobs, and this part does both: the bores hold two lines in fixed parallel while the tab hardware bolts the pair to structure, so the run neither chafes against itself nor wanders as a unit. Dual tabs suit panels and tight corners where the clamp must mount from the side, with self-tapping bolts or rivnuts carrying the load, and the anti-spin feature keeping halves from rotating against each other during torque. Size bores to hose OD, anchor at sensible intervals, and printed-with-brass construction shrugs off the engine bay heat that softens lesser prints.

Kit Includes

• 1x Cross-Mount Dual Hose Separator (size per your selection)

Applications

• Sizes: 14 mm, 17 mm, 20 mm, 11 mm, 13 mm, 16.0 mm
• Common uses: anchoring fuel feed and return pairs, oil line runs, organized wiring and hose routing on panels and chassis
• Pairs with FLF braided hose
