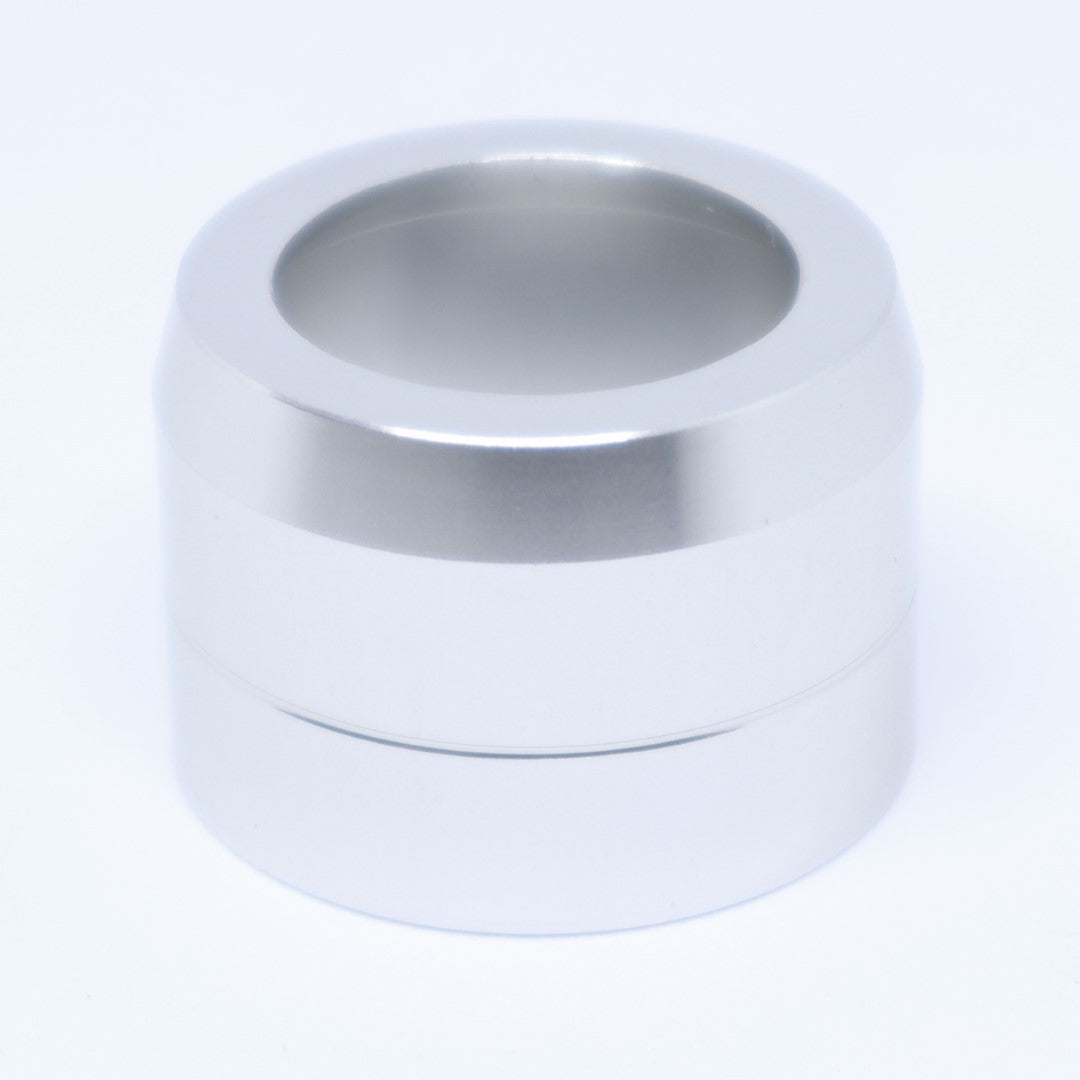

Crimp-On Swivel Hose End Replacement Sleeve

A crimp fitting is one-time-use only if you throw the whole fitting away.

Crimped connections are permanent by design, but the machined body under the sleeve is not spent when the hose is. The Finish Line Factory Crimp-On Swivel Hose End Replacement Sleeve lets you cut off a retired hose, press on a fresh sleeve, and crimp the same fitting onto new line. Offered in 6AN, 8AN, 10AN, 12AN, 16AN. The fitting survives; only the sleeve retires.

Benefits

• A retired hose no longer takes a good fitting with it
• Fresh sleeves crimp with the same clean bite as the originals
• Rebuild stock on the shelf turns hose replacement into a same-day job
• The expensive machined body earns multiple service lives

Features

• Replacement crimp sleeve for FLF braided rubber crimp-on swivel hose ends
• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• Single-use sleeve, reusable fitting body
• For nylon and stainless braided rubber hose
• Sold individually

The Details

A crimp joint works by cold-forming the sleeve around hose and nipple, which is exactly why the sleeve cannot be reused: its material has already flowed into its final shape. The fitting body underneath, though, is untouched. To rebuild, cut the old sleeve off carefully without scoring the nipple, inspect the nipple barbs, slide the new sleeve on, insert fresh hose to full depth, and crimp to the specified diameter for the size. Measure the finished crimp with calipers rather than trusting feel; correct crimp diameter is what separates a permanent seal from a future leak. Sleeves must match both the fitting size and hose type; rubber-hose sleeves and PTFE-hose sleeves are not interchangeable.

Kit Includes

• 1x Crimp-On Swivel Hose End Replacement Sleeve (size per your selection)

Applications

• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• Fits FLF Crimp-On Swivel Hose Ends for braided rubber hose
• Common uses: re-hosing crimped fuel and oil lines, refurbishing take-off fittings, stocking crimp benches
