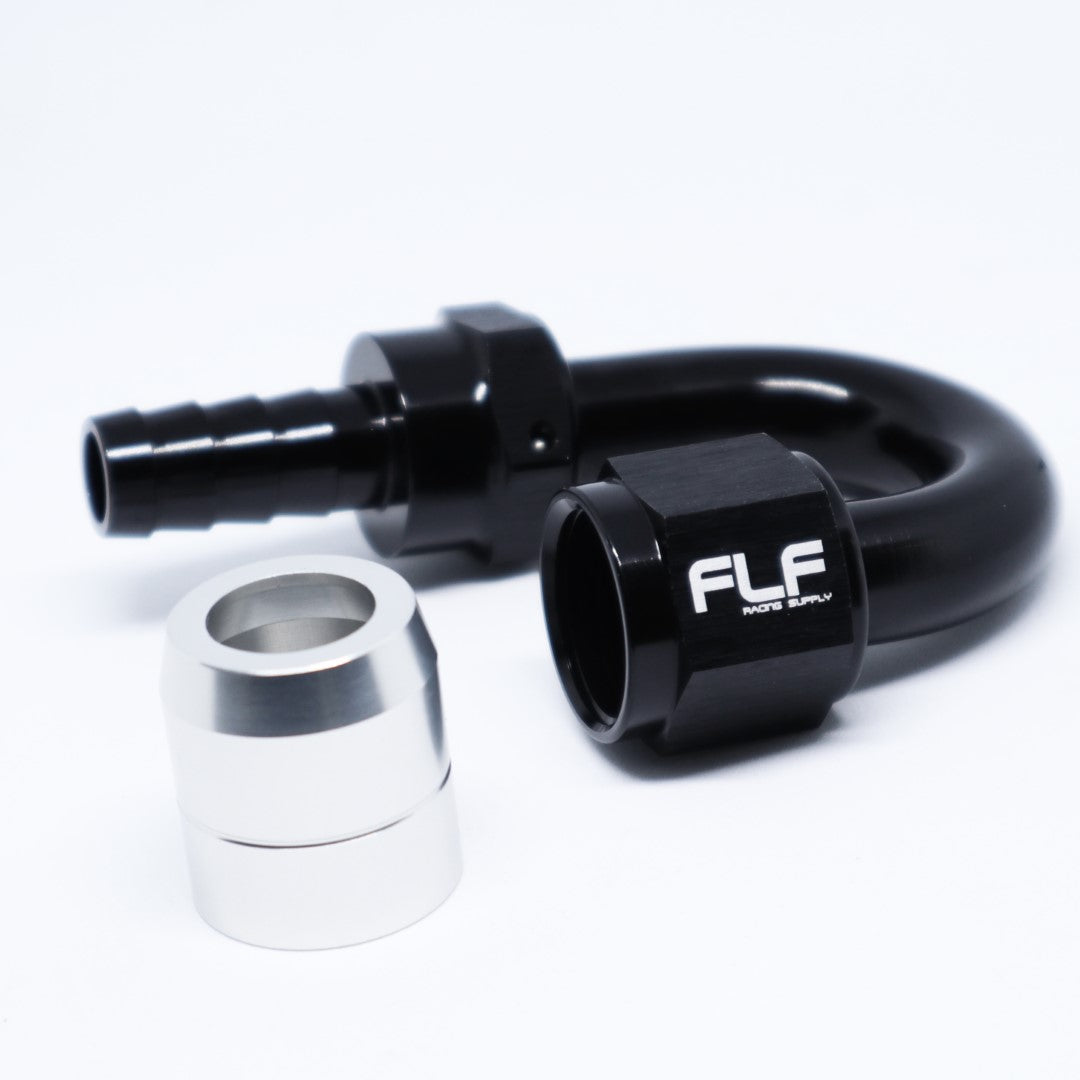

Crimp-On Swivel Hose End - 150 Degree AN

Some ports point almost exactly the wrong direction; 150 degrees answers them.

When a line must never come apart, crimped is the honest answer. The Finish Line Factory Crimp-On Swivel Hose End - 150 Degree AN permanently swages onto nylon or stainless braided rubber hose, with a swiveling female AN nut, o-rings selected for volatile fuels including E85, and sizes 6AN, 8AN, 10AN, 12AN, 16AN. A 150 degree outlet routes the hose without stressing the liner. Built once, sealed for good.

Benefits

• A finished crimp feels like one solid piece, hose and fitting fused
• Near-reversals happen inside the fitting instead of in a strained loop of hose
• No collar to back off, no assembly to second-guess at the track
• The swivel nut still spins free for alignment even after the crimp is done
• Lower profile than a cutter-style end where clearance is tight

Features

• Crimp-on design for braided rubber hose (nylon or stainless braid)
• Female AN swivel nut sealing on the 37 degree flare
• 150 Degree outlet angle
• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• O-rings selected for fuels including E85, plus oil, coolant, water, and air
• Sold as a single hose end; replacement sleeves available separately

The Details

At 150 degrees the fitting nearly reverses the line, which lets a hose leave a port aimed the wrong way and come straight back without a folded liner or a wide wasted loop. A crimped end trades reusability for absolute retention: the sleeve is cold-formed around the hose to a specified diameter, and once formed it will not loosen, back off, or vibrate free. That makes crimp ends the pick for lines that live in vibration and heat, and for builders who want the factory-hose look without exposed threads. Correct assembly means cutting the hose square, seating it to full depth against the nipple stop, and crimping to the published diameter for the size, verified with calipers. The AN connection itself still seals dry on the 37 degree flare, no sealant. Fittings can be rebuilt after a hose retires using FLF replacement sleeves, so the machined body is a long-term investment rather than a consumable.

Kit Includes

• 1x Crimp-On Swivel Hose End - 150 Degree AN (size per your selection)

Applications

• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• Mates to any male AN flare fitting in the matching size
• Common uses: fuel feed and return lines, oil cooler and turbo lines, coolant plumbing, any line where permanent retention beats reusability
• For FLF nylon braided and stainless steel braided rubber hose; not for PTFE-lined hose
