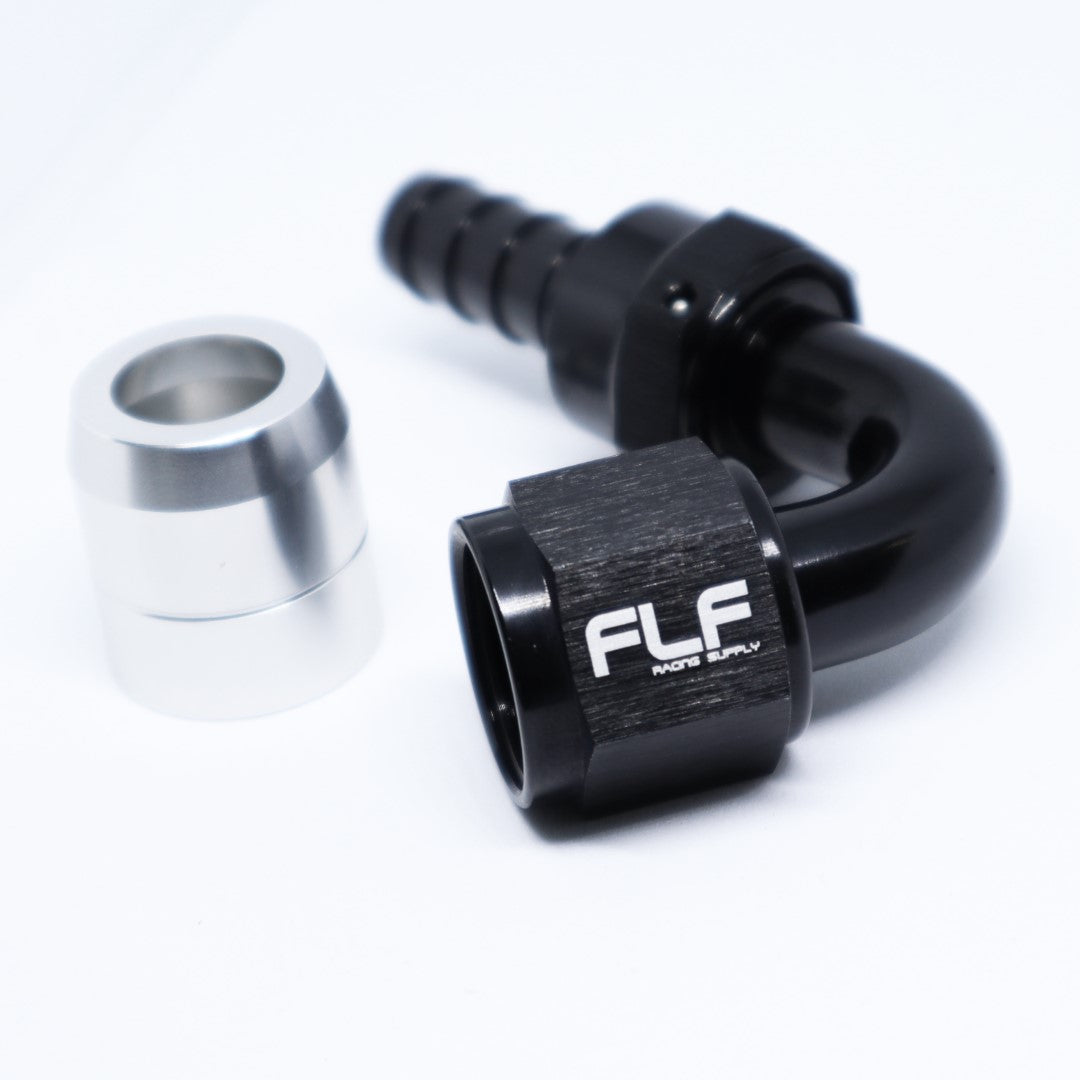

Crimp-On Swivel Hose End - 120 Degree AN

When the port faces the wrong way entirely, 120 degrees turns the line back around.

When a line must never come apart, crimped is the honest answer. The Finish Line Factory Crimp-On Swivel Hose End - 120 Degree AN permanently swages onto nylon or stainless braided rubber hose, with a swiveling female AN nut, o-rings selected for volatile fuels including E85, and sizes 6AN, 8AN, 10AN, 12AN, 16AN. A 120 degree outlet routes the hose without stressing the liner. Built once, sealed for good.

Benefits

• Awkward back-facing ports stop dictating your whole hose route
• No collar to back off, no assembly to second-guess at the track
• The swivel nut still spins free for alignment even after the crimp is done
• Lower profile than a cutter-style end where clearance is tight
• A finished crimp feels like one solid piece, hose and fitting fused

Features

• Crimp-on design for braided rubber hose (nylon or stainless braid)
• Female AN swivel nut sealing on the 37 degree flare
• 120 Degree outlet angle
• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• O-rings selected for fuels including E85, plus oil, coolant, water, and air
• Sold as a single hose end; replacement sleeves available separately

The Details

A 120 degree body reaches past a right angle to double the hose back without folding it, useful when the port aims away from where the line must travel. A crimped end trades reusability for absolute retention: the sleeve is cold-formed around the hose to a specified diameter, and once formed it will not loosen, back off, or vibrate free. That makes crimp ends the pick for lines that live in vibration and heat, and for builders who want the factory-hose look without exposed threads. Correct assembly means cutting the hose square, seating it to full depth against the nipple stop, and crimping to the published diameter for the size, verified with calipers. The AN connection itself still seals dry on the 37 degree flare, no sealant. Fittings can be rebuilt after a hose retires using FLF replacement sleeves, so the machined body is a long-term investment rather than a consumable.

Kit Includes

• 1x Crimp-On Swivel Hose End - 120 Degree AN (size per your selection)

Applications

• Sizes: 6AN, 8AN, 10AN, 12AN, 16AN
• Mates to any male AN flare fitting in the matching size
• Common uses: fuel feed and return lines, oil cooler and turbo lines, coolant plumbing, any line where permanent retention beats reusability
• For FLF nylon braided and stainless steel braided rubber hose; not for PTFE-lined hose
