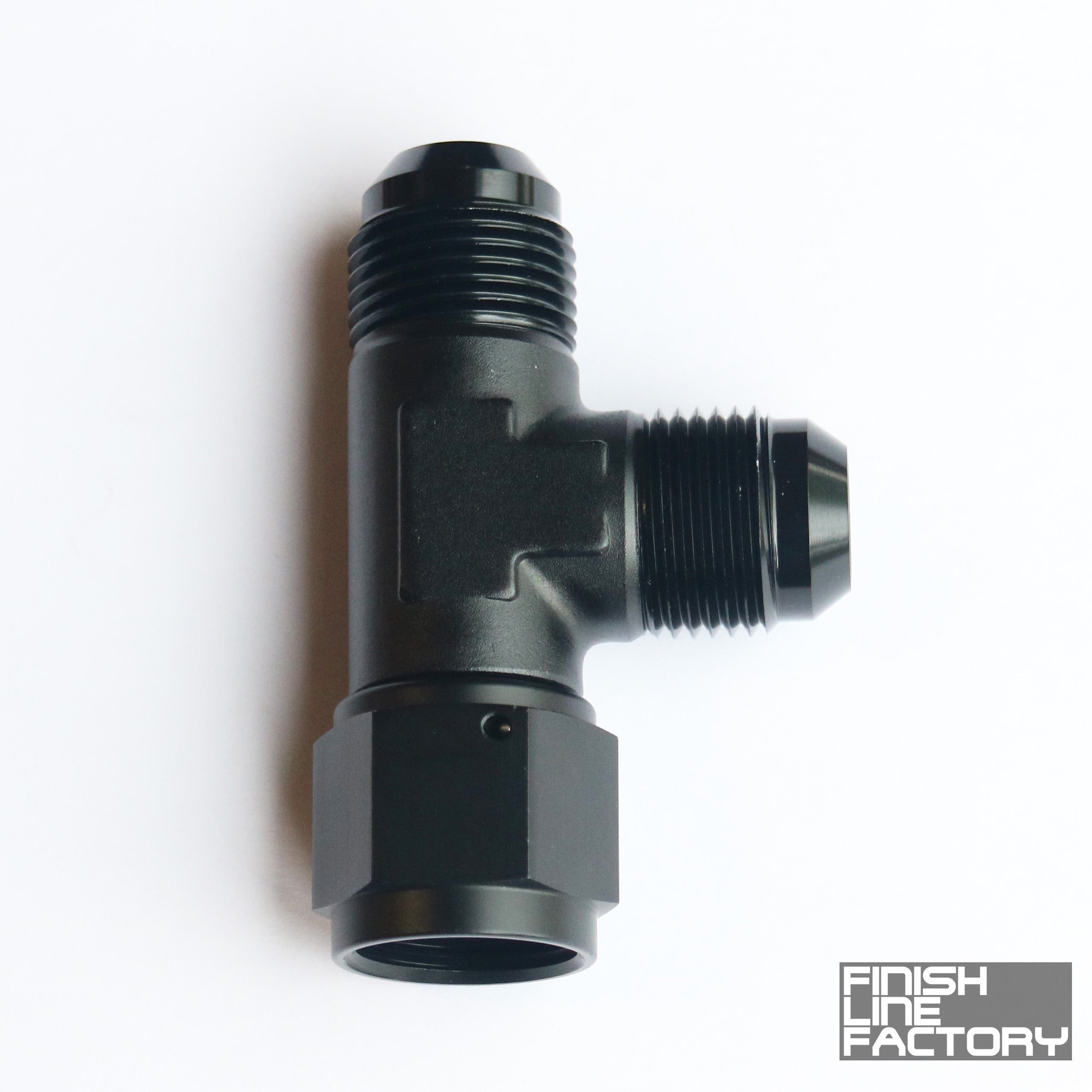

AN Male Tee with Female AN Swivel On Run (MMF)

A tee that drops into an existing run without rotating either end.

Splitting flow is routine; doing it without a leak or a fabrication job is the trick. The Finish Line Factory AN Male Tee with Female AN Swivel On Run (MMF) is CNC machined from lightweight 6061 aluminum, anodized black, in 3AN, 4AN, 6AN, 8AN, 10AN, 12AN, 16AN, with a female AN swivel on one run leg and male flares on the other two, so it splices into a line while the swivel handles alignment. High-quality seals throughout, built for volatile fuels.

Benefits

• The split happens in one machined piece, no stacked adapters
• The swivel leg draws onto its flare without rotating the whole tee
• Threads engage square with the smooth feel of real machining
• Branch routing stays adjustable until the last nut is torqued

Features

• CNC machined 6061 aluminum, black anodized
• Male-male-female: female swivel on one run leg (MMF)
• Sizes: 3AN, 4AN, 6AN, 8AN, 10AN, 12AN, 16AN
• 37 degree flare sealing on every connection
• Suits fuel, oil, water, and air delivery, including racing fuels
• Sold as a single tee

The Details

Tee geometry decides installation before flow: an all-male tee wants three female hose ends and total routing freedom; a female-on-side tee mounts itself directly to a male fitting, gauge port, or regulator flare and branches from there; a female-on-run tee splices into an existing line, its swivel absorbing the rotation problem. The swivel nut is the assembly cheat code, drawing the tee onto a fixed flare with everything else already clocked. All connections seal dry on the 37 degree cone, no sealant, and each leg should be torqued with the tee body backed up by an aluminum wrench so the other joints stay put. Size the branch for its job; a gauge feed off a 10AN run does not need a 10AN branch, and stepping down at the tee with a reducer keeps sensors happy.

Kit Includes

• 1x AN Male Tee with Female AN Swivel On Run (MMF) (size per your selection)

Applications

• Sizes: 3AN, 4AN, 6AN, 8AN, 10AN, 12AN, 16AN
• Common uses: split fuel feeds and returns, gauge and sensor branches, dual cooler feeds, vent junctions
• Mates to a male AN flare on the swivel leg and female hose ends elsewhere
