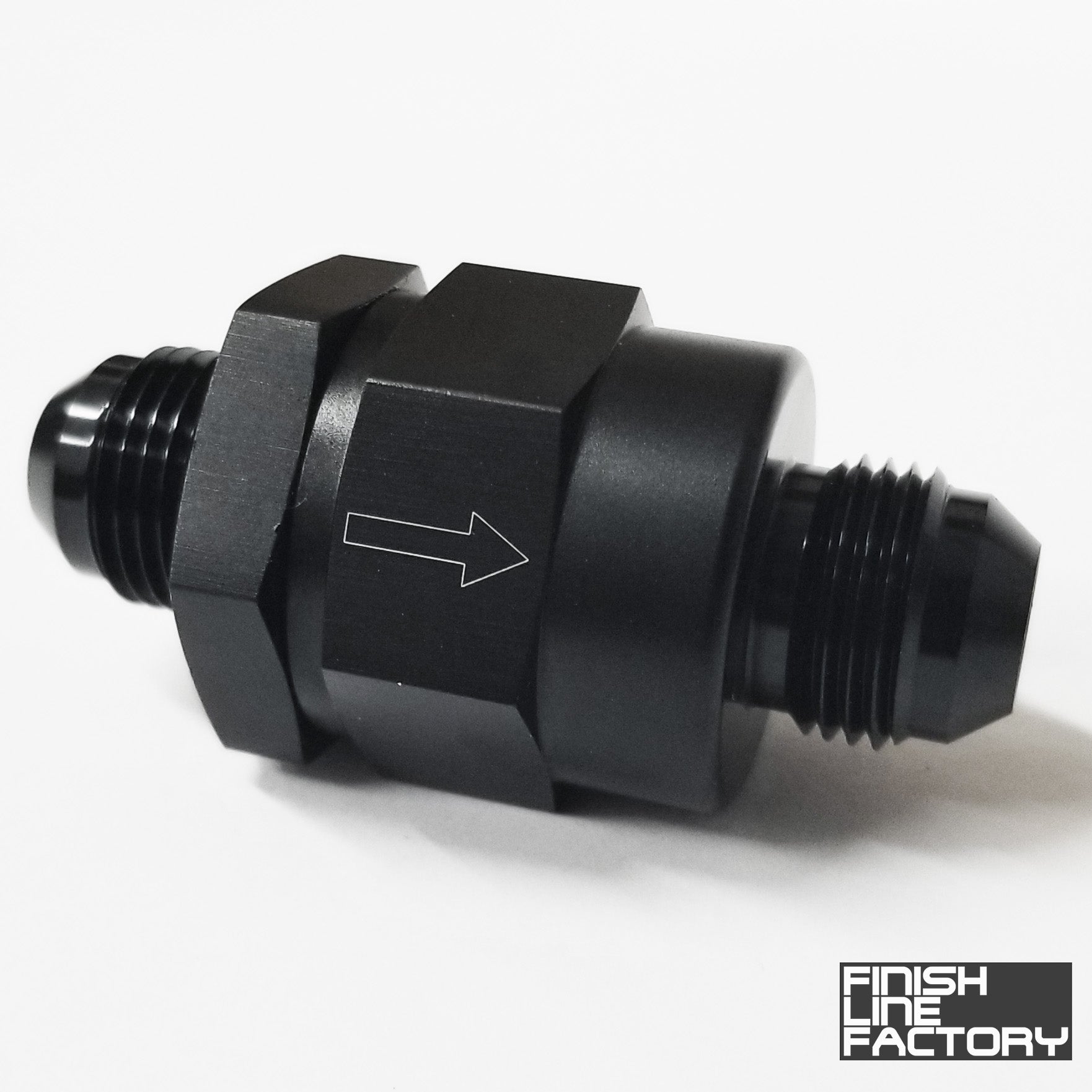

AN Check Valve

Flow should be a one-way conversation, and this valve ends the argument.

Drain-back, siphoning, and reverse flow all exploit the same weakness: a line that works both ways. The Finish Line Factory AN Check Valve closes the back door, CNC-machined from high-quality aluminum in 06 AN, 08 AN, 10 AN, 12 AN, 16 AN, ideal for controlling one-way fuel flow and equally at home in oil, water, and air systems. Install with the arrow, forget it forever.

Benefits

• Prime holds overnight and the first crank fires clean
• Catch can and vent routing stops burping backward
• The valve does its job silently, which is the whole point
• One small fitting removes an entire failure mode

Features

• One-way check valve for directional flow control
• High-quality CNC-machined aluminum construction
• Sizes: 06 AN, 08 AN, 10 AN, 12 AN, 16 AN
• AN connections for standard plumbing
• For fuel, oil, water, and air systems
• Sold individually

The Details

Anywhere fluid must not retrace its path, a check valve is the honest fix: fuel feeds that drain back to the tank overnight, vent and breather runs that siphon under the wrong pressure delta, transfer plumbing between tanks, vacuum references that must hold. The mechanism only works pointed correctly, so follow the flow marking, and place the valve where its small restriction costs least, generally not as the choke point of a max-flow feed without accounting for it. AN connections mean it plumbs and services like every other fitting in the system, sealing dry at the flares with the body backed up during torque.

Kit Includes

• 1x AN Check Valve (size per your selection)

Applications

• Sizes: 06 AN, 08 AN, 10 AN, 12 AN, 16 AN
• Common uses: fuel drain-back prevention, vent and breather one-way control, tank transfer plumbing, vacuum line check duty
• Ties into standard AN plumbing
