Haltech CAN Integration Module (TBS-00314) - Mazda RX-8 Manual (2009-2012)

Haltech CAN Integration Module for the 2009-2012 Mazda RX-8 (Manual)

Swap the engine. Keep the car.

Pull the factory PCM out of an SE3P RX-8 and the chassis stops cooperating. The cluster goes dark, the tach and speedo quit, the immobilizer refuses to let the car start, and the DSC and ABS lights latch on because the modules that used to hear from the PCM now hear nothing at all. The Tuned By Shawn Haltech CAN Integration Module sits on the factory bus and keeps those conversations going, so your gauges, warning lights, climate control and stability systems behave normally while a standalone ECU runs whatever you put in the bay. Rotary or piston, it does not care.

What You'll Feel

• A car that actually starts. The factory immobilizer is satisfied with the stock PCM gone
• A cluster that still works. Tach, speedo, coolant temp and warning lights read like a stock car
• ABS and DSC that stay quiet instead of lighting the dash every drive
• Climate control that still blows cold in traffic instead of throwing a tantrum
• No fault code lottery every time you turn the key
• An interior that still looks stock, so the swap reads as finished work instead of a project car

Features

• Pre-configured for the 2009-2012 Mazda RX-8 Series 2 with the 6-speed manual
• Handles the SE3P immobilizer handshake, so the car starts on the factory key without gutting the security system or hunting down a bypass module
• Keeps the factory cluster, ABS, DSC and HVAC online with the stock PCM removed
• Engine agnostic. The same module works whether you stayed rotary or went piston
• Rotary swaps: 13B-REW two rotor, 20B three rotor, 26B four rotor
• Piston swaps: GM LS family, Honda K20 and K24, and other common RX-8 swap engines
• Tach and speedo are driven from your standalone ECU's live data, so the readings match the engine you actually installed
• Developed and tested on a real RX-8, not just a bench

The Details

The RX-8 is not one computer, it is a network. The factory PCM constantly broadcasts engine speed, road speed, coolant temperature, throttle position and torque over the Mazda CAN bus, and the instrument cluster, ABS and DSC controller, climate control and body modules all depend on that traffic to do their jobs. Remove the PCM for a swap and every one of those modules assumes the worst. That is why so many RX-8 engine swaps end with a dead dash, a permanent triangle of warning lights, and a row of aftermarket gauges bolted over an interior that used to look good.

The immobilizer is the one that stops builds cold. On the SE3P the security system expects a specific exchange with the PCM before it will allow the car to run, so pulling the factory computer usually means the engine cranks and nothing else. This module answers that handshake directly. No bypass box wired into the column, no security system torn out of the car, no keys left on a screwdriver in the ignition.

From there the CAN Integration Module replicates the messages the rest of the factory systems expect, translating between your standalone ECU and the chassis in real time. It does not care what is making the power. A built 13B-REW, a 20B three rotor, a 26B four rotor, an LS, a K24, or any other piston swap: the module reads live data off the standalone and speaks Mazda to the car. It arrives pre-loaded with the RX-8 configuration, so there is no CAN programming homework on your end.

Kit Includes

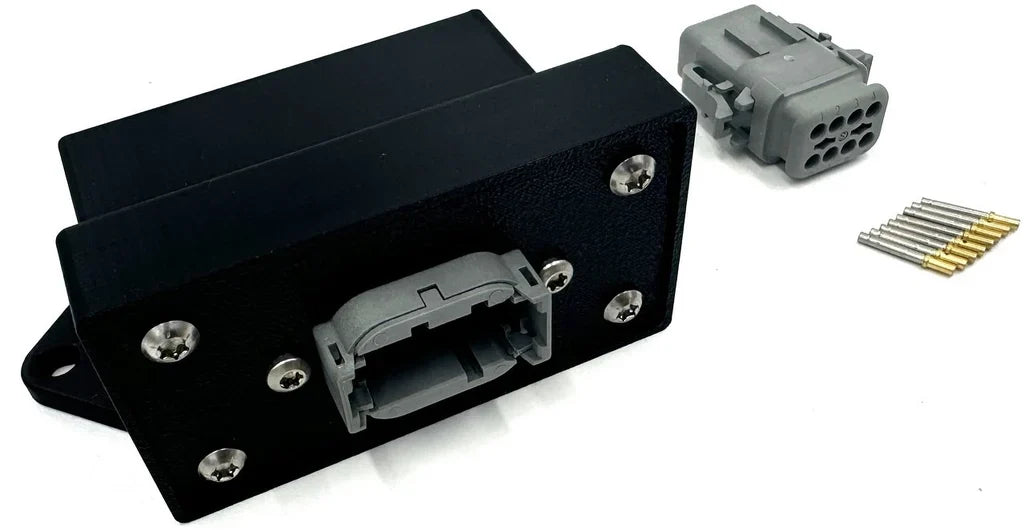

• CAN Module + 8 pin Deutsch connector for integration
• 1 hour live Zoom remote session to confirm CAN and basemap configuration

Applications

• 2009-2012 Mazda RX-8 Series 2, 6-speed manual (SE3P)
• Rotary swaps: 13B-REW, 20B, 26B
• Piston swaps: LS1, LS2, LS3 and other LSx, Honda K20 and K24, and similar
• Requires a standalone ECU running the engine
• Automatic transmission cars are not supported by this version
