Toyota - Zestek SCX Pro Racing Steering Wheel Hub

SCX Pro pre-orders are open. Pre-order units ship as Zestek's production batches arrive.

Every factory button, none of the factory wheel. Now with a second CAN bus and standalone ECU support.

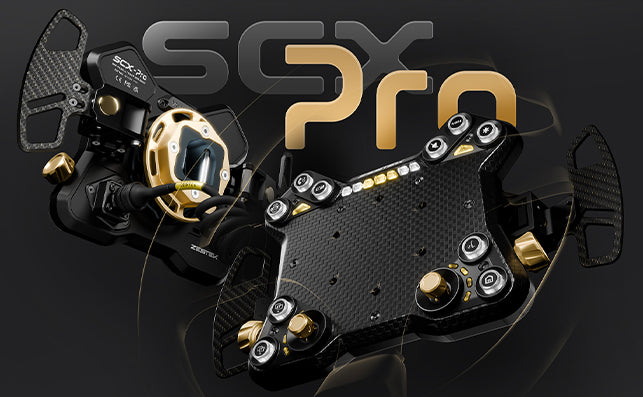

Swapping a racing wheel into a modern Toyota usually means saying goodbye to cruise control, media buttons, and every function the factory put at your thumbs. The Zestek Racing USA SCX Pro Racing Steering Wheel Hub for Toyota keeps all of it, using a vehicle-specific OEM Adapter to maintain CAN communication with the car, and then goes further than the SCX: a second fully custom CAN bus for aftermarket devices, direct standalone ECU integration, two 0-5V analog outputs and four low-side auxiliary outputs, so the hub can run OEM functions and your aftermarket electronics at the same time. Dual-stage RGB buttons, V2.0 magnetic paddle shifters and the VeloLink 2.4G wireless system carry over, the included Velo OBD module streams live vehicle data to the hub's feedback lights, and a 100% woven carbon fiber front panel over an aerospace-grade PA66 housing keeps it light and rigid. Factory function and full aftermarket control on one race car interface.

What You'll Feel

• Cruise, media, and voice controls still under your thumbs after the factory wheel is long gone
• Exhaust valves, fans, nitrous, pit limiter or any switched accessory fired straight off the hub with no relay box in between
• A crisp magnetic snap from paddles durability tested past a million pulls
• Shift lights and warning indicators in your eyeline instead of buried in the dash
• The wheel on and off in one click, with no cable to remember before you roll out
• Button lighting in whatever color your cockpit calls for

Features

• Every SCX function retained; everything below is in addition
• Full aftermarket open CAN support alongside OEM function support through Zestek's vehicle-specific OEM Adapter
• Additional custom CAN bus, so aftermarket devices and OEM communication run on separate lines
• Standalone ECU support for fully built and race-converted cars where the factory ECU is gone
• 2x 0-5V analog outputs for devices that expect an analog signal rather than a CAN message
• 4x low-side auxiliary outputs for switching external loads directly from the hub
• 4-12 absolute outputs
• VeloLink 2.4G wireless system connects up to 6 devices; included Velo OBD module displays real-time vehicle data with RPM shift lights and warning indicators
• Supports the VeloSwitch for up to 16 wireless switched outputs (exhaust valving, ESP, PTC and more)

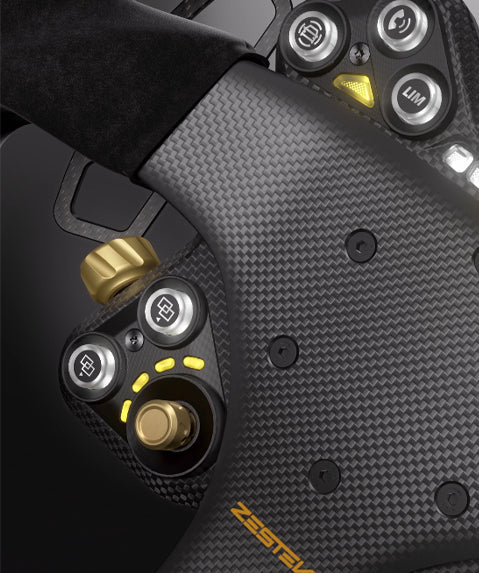

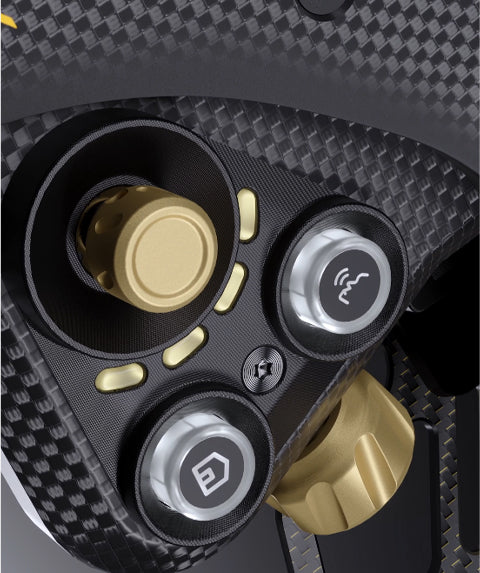

• Dual-stage buttons with 16.7 million color RGB backlighting
• V2.0 magnetic paddle shifters, tested beyond 1,000,000 presses without failure

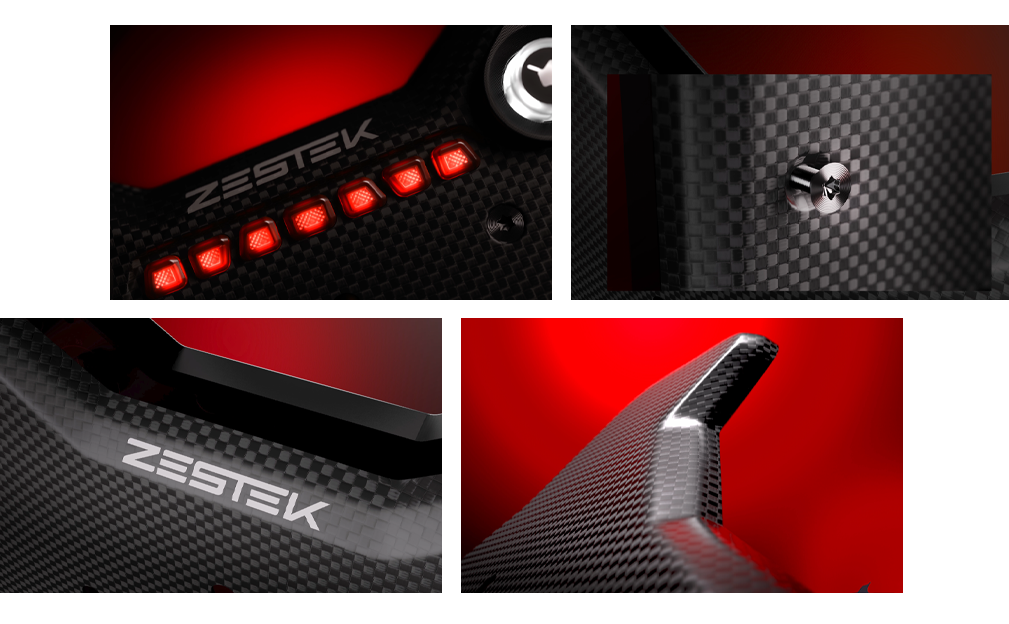

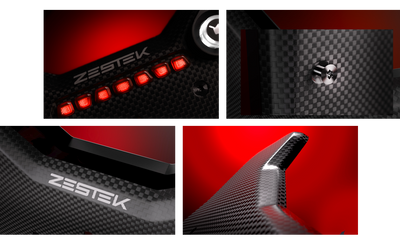

• 100% woven carbon fiber front panel, hot-pressed in a dual-sided metal mold, over an aerospace-grade PA66 housing
• CNC-machined pogo-pin quick release carrying both the mechanical and electrical connection

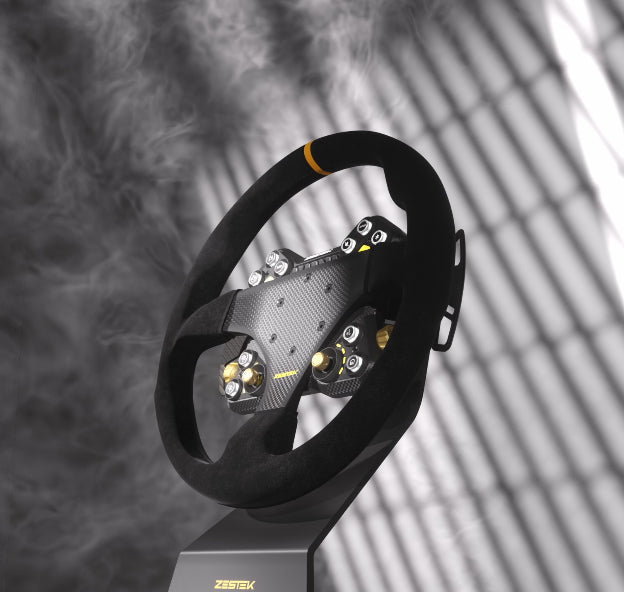

• Accepts most 330mm and 350mm aftermarket steering wheels with a 6x70mm bolt pattern (clearance can be tight on some wheels); 2.5mm spacers included to raise the wheel for fitment

The Details

The SCX Pro works because the electronics are built around your specific car. Select your make and model and the hub is matched with the OEM Adapter for that chassis; the adapter chip sits concealed inside the rear of the quick release, where it handles CAN communication with the vehicle, so factory functions pass through the hub instead of dying with the old wheel. The Pro's second CAN bus runs your aftermarket devices and standalone ECU on their own line instead of competing with the OEM channel. Wireless expansion runs over Zestek's VeloLink 2.4G link, which is how the included Velo OBD module gets live engine data onto the hub's feedback lights without extra wiring. Configuration and firmware updates run through Zestek's Work Station software. Mounting requires the vehicle-specific Zestek Racing Boss Kit for your Toyota, sold separately, which bolts to the steering column and routes the hub wiring. Installation involves removing the factory wheel, so on a street-driven car be aware the driver airbag and clockspring functions are affected. Professional installation through an authorized Zestek shop is recommended for system integration.

Motorsport Cable Add-On: the Motorsport Grade Universal Cable is a sealed motorsport connector and lead for wiring the hub directly. It is required if you are not wiring through the factory clock spring (clock spring deleted, race car, or a standalone install). Leave it at No if you are keeping the factory clock spring.

Kit Includes

• 1x SCX Pro Racing Hub unit
• 1x Velo OBD unit
• 1x V2 Quick Release
• 3x Horn button blockers
• 2x 2.5mm steering wheel spacers
• 1x USB connection cable
• 1x Hardware bag
• 1x SCX Pro sticker sheet set
• Motorsport Grade Universal Cable (only when the add-on is selected)

Applications

• A90 MK5 Supra
• ZN6/ZN8 GR86 MT (2018+)
• ZN6/ZN8 GR86 AT (2018+)
• GR Corolla/Yaris (AT)
• GR Corolla/Yaris (MT)
• Requires the Toyota Zestek Racing Boss Kit for column mounting (sold separately)
