Radium Engineering RA Fuel Cell | Universal (20-06XX)

A fuel cell is the one component where "good enough" is not a category.

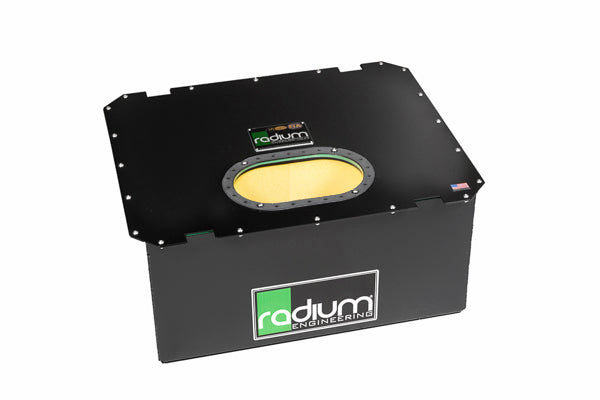

Competition sanctioning bodies require certified cells for a reason: the tank is the part of the car you never want tested by an accident. The Radium Engineering RA-Series Fuel Cell is designed and manufactured by Radium to meet the top safety requirements set by FIA and SFI, built around a seamless polymer bladder resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol) and filled with explosion suppressing anti-slosh foam. The bladder lives inside a lightweight powder coated aluminum enclosure with an anodized nut ring, removable inspection plate, FKM gaskets, and a Certification of Conformance in the box. Five sizes from 6 to 22 gallons cover road racing, time attack, drifting, rally, off-road, and endurance duty.

What You'll Feel

• Tech-inspection confidence, with FIA and SFI safety requirements met and certification paperwork included
• Fuel-type freedom, since the bladder polymer resists everything from diesel to methanol
• Slosh controlled at the source by the explosion suppressing foam fill
• Service access through the removable inspection plate without disturbing the installation
• A direct platform for Radium's FCST-X surge tank, shipping preassembled when ordered together

Features

• Seamless polymer bladder resistant to all fuel types, thoroughly tested and carrying the critical certifications

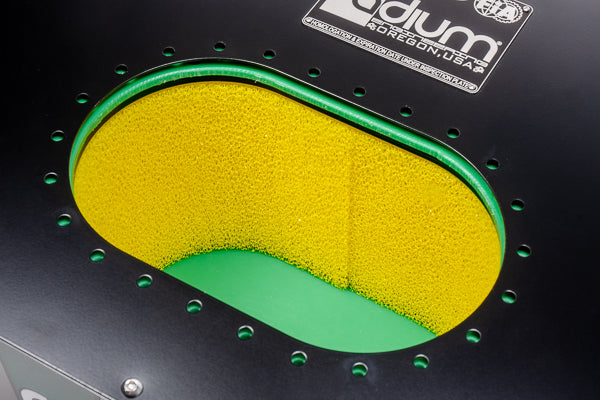

• Explosion suppressing anti-slosh foam fill
• Lightweight powder coated aluminum enclosure with anodized aluminum nut ring and removable inspection plate

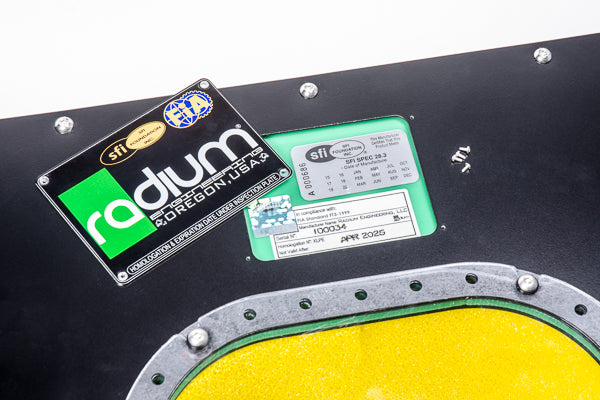

• 2x FKM 6x10 24-bolt gaskets, stainless steel hardware, and Certification of Conformance included

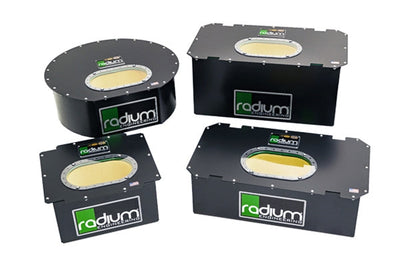

• Sizes: 6 gal (20-0606, 5.4-6.0 gal), 10 gal (20-0610, 9.2-10.0), 10.5 gal spare tire (20-0611, 10.3-10.5), 14 gal (20-0614, 13.7-14.0), 22 gal (20-0622, 21.5-22.0)

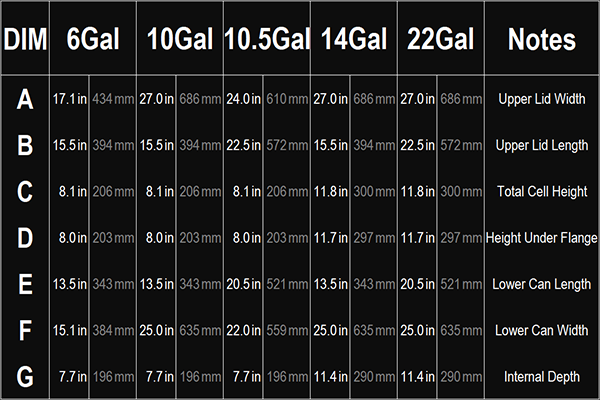

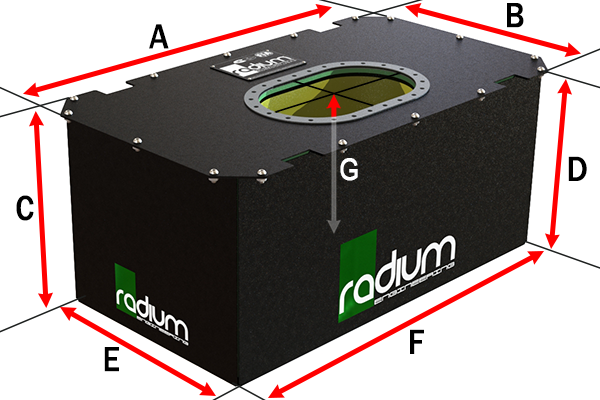

• Internal depth to bladder floor: 7.7" (6/10/10.5 gal), 11.4" (14 gal)

The Details

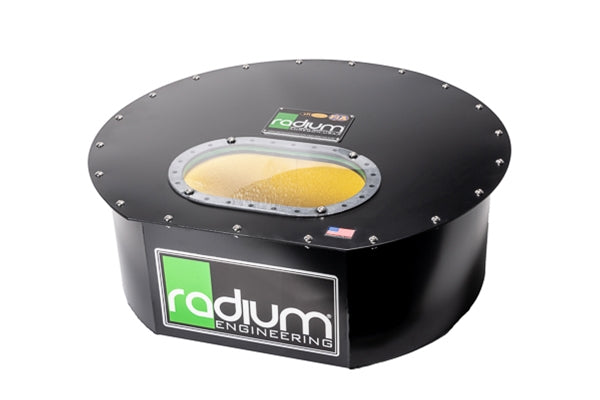

The bladder is the heart of the system, the tested and certified component, while the aluminum enclosure protects it from damage and provides the mounting structure, a division of labor that is exactly how top-level cells are built. Capacity figures are honest approximations, since manufacturing processes vary actual volume slightly within each size's stated range, and the 10.5 gallon version is shaped for spare tire well installations. Plan the whole system before ordering: the 24-bolt lid pattern accepts Radium's FCST-X surge tank (shipped assembled when purchased together) or Radium's carbon fiber lids, and level senders, fill caps, and pickup hardware complete the installation. Two purchasing notes Radium states plainly: all fuel cell sales are FINAL with no returns or exchanges, so measure carefully prior to ordering, and international customers should arrange shipping quotes in advance.

Kit Includes

• 1x Seamless polymer bladder (selected capacity)
• 1x Explosion suppressing anti-slosh foam
• 1x Powder coated aluminum enclosure with anodized nut ring and removable inspection plate
• 2x FKM 6x10 24-bolt gaskets, stainless steel hardware
• Certification of Conformance

Applications

• Universal: road racing, time attack, drifting, rally, off-road, endurance, and other motorsports requiring certified cells
• Pairs with the Radium FCST-X surge tank and carbon fiber fuel cell lids, sold separately
• All sales final; measure carefully before ordering
