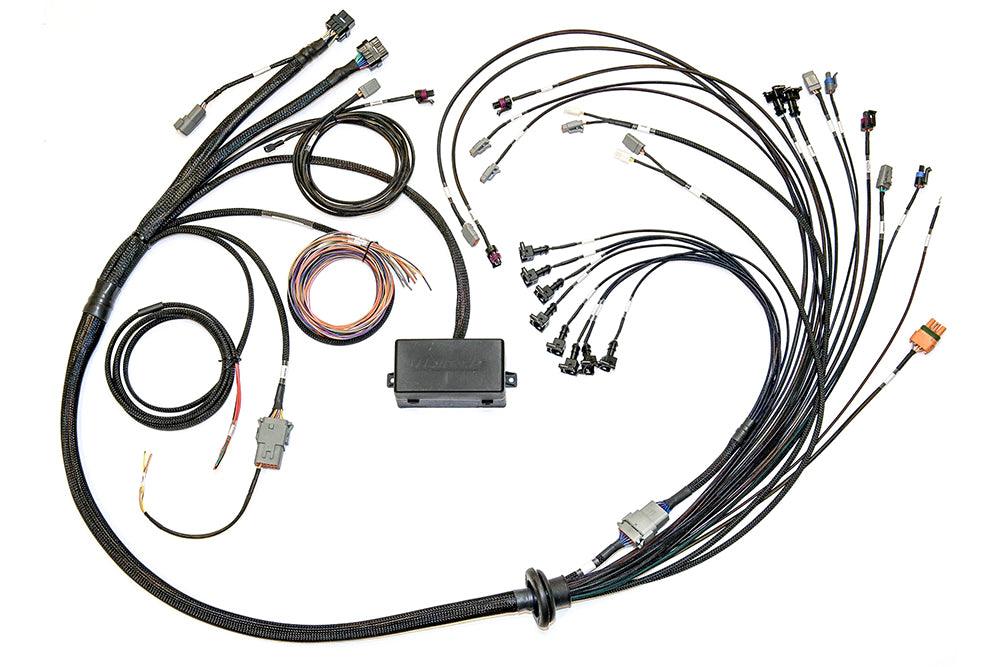

Elite 2500 Ford Coyote 5.0 Early Cam Solenoid Terminated Harness

Elite 2500 Ford Coyote 5.0 Early Cam Solenoid Terminated Harness is the fastest way to wire this engine properly: labelled, pre-terminated wiring built for the application, so the engine side of a swap or race build is done in hours instead of days. Early Style Cam Solenoid - Small single offset keyed connector. Supports DBW and quad variable cam timing. WBC1/2 CAN O2 Wideband Controller ready (Controller and sensor(s) not included) Manual transmission only.

This is the Bosch EV1 injector connector version (HT-141380). If your injectors use a different connector, the alternate version of this harness is listed separately, and if you are not sure which plugs your injectors carry, ask us before ordering.

Why It Matters

Every hour saved on wiring is an hour spent on the parts of the build that actually make power. A terminated harness collapses the highest-risk phase of a swap into an afternoon of connecting labelled wires. Quad cam control is what makes a Coyote a Coyote, and keeping all four phasers active under standalone control preserves the character while removing the factory ceiling.

Features

• 8 injection and 8 ignition outputs suiting 1 to 12 cylinder and 2 to 4 rotor engines
• Drive by wire throttle control
• Intake and exhaust variable cam control
• Dual channel knock control
• Short and long term map learning
• On-board data logging and full CAN connectivity
• Injector connectors: Bosch EV1

The Details

• SKU: HT-141380
• Injector connector: Bosch EV1
• Notes: Requires modification for fitment to supercharged Cobra Jet version. Ignition module is NOT included. Please order HT-020040 if required.

Kit Includes

• Engine harness with fuse block, firewall grommet, pre-wired HPI8 15amp high power ignition module.

Applications

Early Style Cam Solenoid - Small single offset keyed connector. Supports DBW and quad variable cam timing. WBC1/2 CAN O2 Wideband Controller ready (Controller and sensor(s) not included) Manual transmission only. Built for Ford Coyote applications. Check the notes above before ordering, and if fitment is unclear, contact us with your engine and chassis details and we will confirm the right part number.

Tuned By Shawn is a Platinum Haltech Dealer. If you want help planning the install or a remote Zoom tuning session once it is in, both are services we run in house.
