Vacuum Adapters for Fuel Dampers and Regulators
Vacuum Adapters for Fuel Dampers and Regulators

Vendor:Radium Engineering

Vacuum Adapters for Fuel Dampers and Regulators

SKU: 14-0369

Select Product
Select Product: 14-0369 3AN Vacuum Port Adapter
$9.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

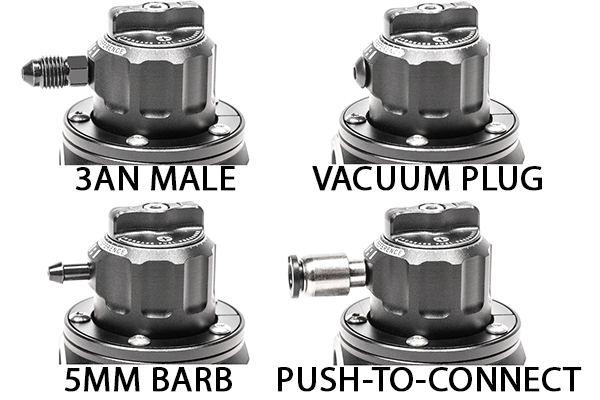

All Radium adjustable fuel pressure regulators and fuel pulse dampers ship with an empty threaded port for a 1:1 rising/falling rate vacuum reference. Some of these adapters ship with regulators and dampers. Threads on both products are threaded #10-32 and these adapters are a quick installation by simply threading them in. It is recommend to use a medium strength thread locker when installing (Green Loctite #290 preferred). These can be used as replacements, or to add a vacuum fitting your product did not ship with.

14-0369 3AN VACUUM PORT ADAPTER

Black zinc-plated 3AN adapter machined from high strength steel. Allows connection of a 3AN hose to the vacuum port.

Note: These adapters are not compatible with FPD-R units built prior to July 2019.

14-0190 3/16" BARB VACUUM PORT ADAPTER

These adapters are included with all Radium Engineering fuel pulse dampers and fuel pressure regulators as standard. They are black zinc-plated and adapt to a 3/16" (5mm) barb.

Many different diameter vacuum hoses can be used, including:

  • 5/32" (4mm)
  • 3/16" (5mm)
  • 7/32" (6mm)

14-0769 1/4" PUSH-TO-CONNECT VACUUM PORT ADAPTER

This is a vacuum fitting that adapts to 1/4" push-to-connect hose. Machined from brass then nickel-plated with Buna-N O-rings. The required hard plastic 1/4" OD tubing must be purchased elsewhere, Radium does not supply any.

18-0112 VACUUM PORT PLUG

Black-oxide 10-32 threaded plug machined from stainless steel. Install this in place of a vacuum line adapter when running your pulse damper with no vacuum line, or when using the regulator in a static pressure installation.
