PCV Valve Bypass, GM LT4 LT5
SKU: 20-0988
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
PCV Valve Bypass, GM LT4 LT5
Product details
Description
The OEM PCV valve on the supercharged LT5 is installed directly into the valley of these engines. Unfortunately, it takes internal crankcase gasses and deposits them directly into the lower housing of the supercharger. Because the architecture is integrated into the engine, there is no way to vent the system or connect an external oil catch can into the system.

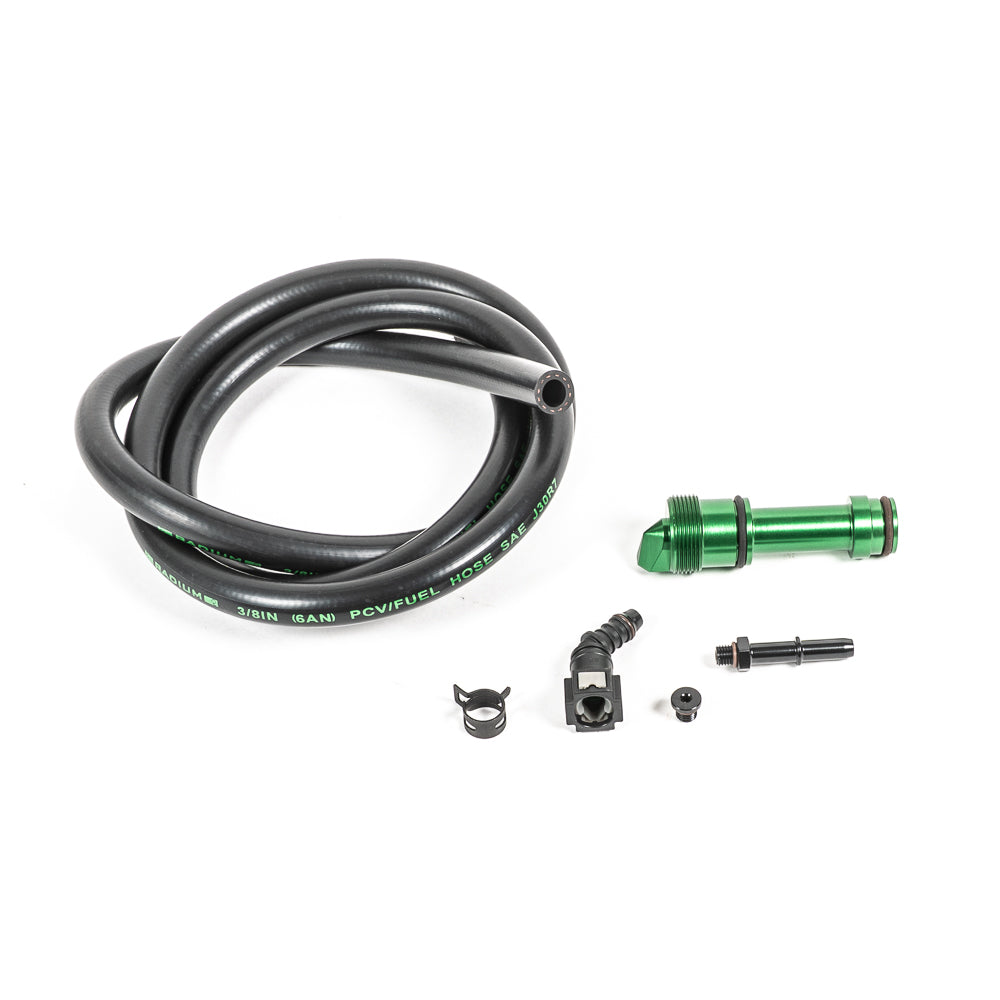

This PCV valve bypass replaces the OEM PCV valve and allows the user to do what they wish with the crankcase air flow. It can be used to install a catch can system with a can mounted PCV valve, or used with a plug to completely block off the PCV system as a delete. As shown in images, the space is very tight. Fortunately, with modern technology and 3D scanning, we were able to get a 3/8" (6AN) hose out of this area without any obstruction.
The port on this bypass is tapped for 2AN ORB (5/16"-24). Male and female 5/16" SAE quick connections are included. Also, a 2AN ORB plug is included if this port needs to be capped off.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
