Hose/Tube Separator Clamps
SKU:
$9.45
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
Product details
Description
The following are billet aluminum clamps used for retaining hard lines, soft lines, hose, tubing, etc.

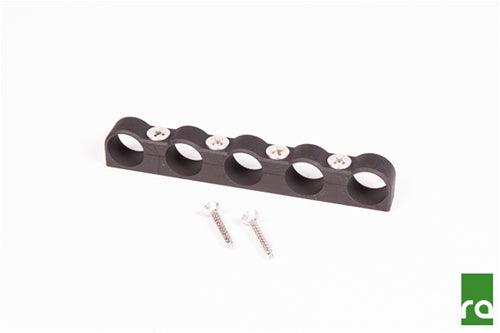

20-0231 HOSE SEPARATOR CLAMP, 5-WAY
Anodized black billet aluminum clamp used for securing -6AN hoses, wire harnesses, etc. Includes all stainless steel hardware (4 bolts and 2 sheet metal screws). Each of the 5 inner diameters (ID) are 9/16" (0.563inch or 14.3mm).
20-0417 HOSE SEPARATOR CLAMP, 2-WAY
Anodized black billet aluminum clamp used for securing -6AN hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE:
Part Numbers 20-0417 and 20-0817 are similar. Listed below are the differences.
a. 20-0817-The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. A threaded boss is not required.
b. 20-0417-The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt as shown below.
20-0817 HOSE SEPARATOR CLAMP, 2-WAY, THREADED
Anodized black billet aluminum clamp used for securing -6AN hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE:
Part Numbers 20-0417 and 20-0817 are similar. Listed below are the differences.
a. 20-0417-The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt.
b. 20-0817-The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. As shown below, a threaded boss is not required.
20-0231 HOSE SEPARATOR CLAMP, 5-WAY
Anodized black billet aluminum clamp used for securing -6AN hoses, wire harnesses, etc. Includes all stainless steel hardware (4 bolts and 2 sheet metal screws). Each of the 5 inner diameters (ID) are 9/16" (0.563inch or 14.3mm).
20-0417 HOSE SEPARATOR CLAMP, 2-WAY
Anodized black billet aluminum clamp used for securing -6AN hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE:
Part Numbers 20-0417 and 20-0817 are similar. Listed below are the differences.
a. 20-0817-The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. A threaded boss is not required.
b. 20-0417-The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt as shown below.
20-0817 HOSE SEPARATOR CLAMP, 2-WAY, THREADED
Anodized black billet aluminum clamp used for securing -6AN hard tubing, wire harnesses, etc. Includes a M6x1mm stainless steel bolt. Both inner diameters (ID) are 0.39inch (or 10mm).
NOTE:
Part Numbers 20-0417 and 20-0817 are similar. Listed below are the differences.
a. 20-0417-The bottom clamp has a through hole (not threaded). It requires a M6x1mm threaded boss for securing the provided bolt.
b. 20-0817-The bottom clamp is thread tapped. The provided bolt screws into the bottom clamp. As shown below, a threaded boss is not required.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
