Fuel Tank Bulkhead Fittings
SKU:
- Size:
- 6AN ORB with 8.5mm Barb to 6AN Male Bulkhead
ECUs always ship FREE with Tuned By Shawn!
Manufacturer Limited Warranty
Product details
Description

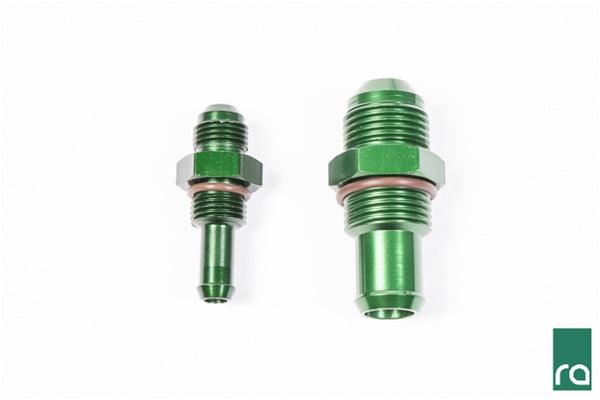

Bright-dipped green anodized aluminum bulkhead fittings.
NOTES:

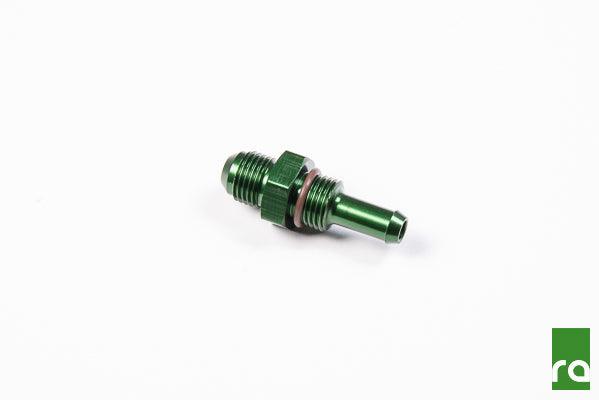

-The 20-0170 6AN ORB with 8.5mm Barb to 6AN Male Bulkhead Fitting was introduced in Radium Fuel Surge Tanks after 2014. It includes a preassembled Viton O-ring and requires a 6AN ORB (9/16-18 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
-The 20-0196 10AN ORB with 5/8" Barb to 10AN Male Bulkhead Fitting was introduced in Radium High Volume Fuel Surge Tanks in 2015. It includes a preassembled Viton O-ring and requires a 10AN ORB (7/8-14 threaded hole) with SAE chamfer to be drilled into the mating part for sealing.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
