Fuel Rail, Ford Barra


Click here to download installation instructions (PDF)


PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings can be found HERE.
8AN ORB Direct Mount Regulators can be found HERE.
8AN ORB Fuel Pulse Dampers can be found HERE.
Fuel Pressure Gauge Adapters can be found HERE.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.


This Radium Engineering fuel rail is CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. It features a large 0.69" center bore for optimal flow.

Like the original fuel rails, the injector bores are 14mm ID so factory injectors are permitted.

Furthermore, provisions for the OEM injector retaining clips are implemented as well.

The rails are compatible with all fuel types including popular alcohol mixtures such as E85.


FUEL RAIL VARIATIONS

20-0536-01 Fuel Rail, Ford Barra, BA-BF Turbo
This product includes the fuel rail and the mounting hardware making it ideal for custom applications.

Included:

-Black Anodized Laser Etched Fuel Rail
-BA-BF Turbo Specific Mounting Brackets
-Black Anodized Feed Hose Clamps
-Stainless Steel Mounting Hardware

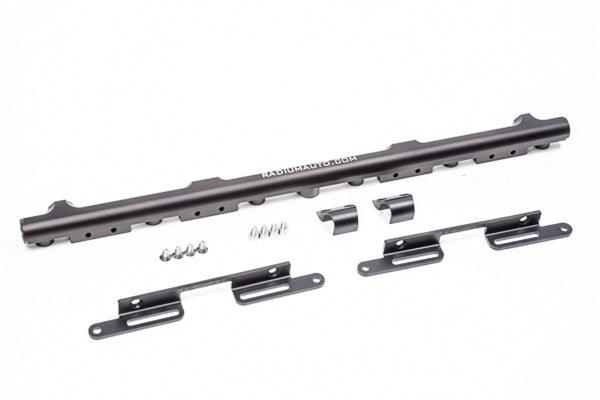

20-0536-02 Fuel Rail, Ford Barra, FG Turbo

This product includes the fuel rail and the mounting hardware making it ideal for custom applications.

Included:

-Black Anodized Laser Etched Fuel Rail
-FG Turbo Specific Mounting Brackets
-Black Anodized Feed Hose Clamps
-Stainless Steel Mounting Hardware


20-0536-03 Fuel Rail, Ford Barra, FG Non Turbo
This product includes the fuel rail and the mounting hardware making it ideal for custom applications.

Included:

-Black Anodized Laser Etched Fuel Rail
-FG Non Turbo Specific Mounting Brackets
-Black Anodized Feed Hose Clamps
-Stainless Steel Mounting Hardware


PLUMBING KIT

20-0536-PK Fuel Rail Plumbing, Ford Barra
This kit is compatible with all Radium Engineering fuel rails for the Ford Barra engines. This high-flow system uses 3/8" EFI fuel hose and connects to the factory fuel pipes. All fuel rail fittings are included along with an adjustable fuel pressure regulator and pressure gauge.
The kit makes fuel rail installation a simple bolt-on job. The Radium fuel pulse damper shown in pictures is not included in the plumbing kit.


Shown above is the 20-0536-PK installed with the 20-0536-02 fuel rail. Shown below is the 20-0536-PK installed with the 20-0536-03 fuel rail.

Included in the plumbing kit:
-Direct Mount Fuel Pressure Regulator
-Fuel Pressure Gauge
-SAE Adapter Fittings
-AN Adapter Fittings
-Stainless EFI Clamps
-3/8" (6AN) Fuel Hose
