Fuel Pump Hanger, FR-S/BRZ/86 (AEM Pumps)

Regular price $573.04

Fuel Pump Hanger, FR-S/BRZ/86 (AEM Pumps) |




Click here to download installation instructions (PDF)

COMPATIBILITY
12-21 Toyota 86
12-20 Subaru BRZ
12-16 Scion FR-S


The Radium Engineering fuel pump hanger permits the use of one or two AEM 50-1220 E85 high-flow fuel pumps.

IMPORTANT NOTES:
1. This system requires the use of an aftermarket fuel pressure regulator
2. This system eliminates the "post" pump filter inside the OEM unit. A low micron aftermarket fuel filter should be installed downstream to protect the injectors from contaminants.

The machined assembly mounts in the factory fuel tank using the OEM ring and gasket and reuses the OEM fuel level sender. A single -8AN male pump feed port and -6AN male return port simplify aftermarket -AN hose plumbing. The complete assembly fits under the OEM access cover without modification.

The custom designed stainless electrical studs easily handle the high current demand that compact bulkhead connectors lack. These serviceable connections are properly sealed and impervious to all standard and exotic fuels. The low profile design keeps all wiring tucked nicely underneath the OEM cover plate. Nonconductive acorn nuts are provided to prevent any accidental short circuits. Lastly, the high quality in-tank wiring is insulated with chemically resistant ETFE.

The kit includes a venturi jet pump with a pressure-relief valve. Without a properly designed jet pump, fuel cannot be properly transferred from the passive side of the OEM saddle bag fuel tank to the active side where the pump(s) reside. When fuel pump flow is increased, the OEM jet pump becomes too restrictive creating unwanted backpressure in the FPR return line causing excessive fuel rail pressure.

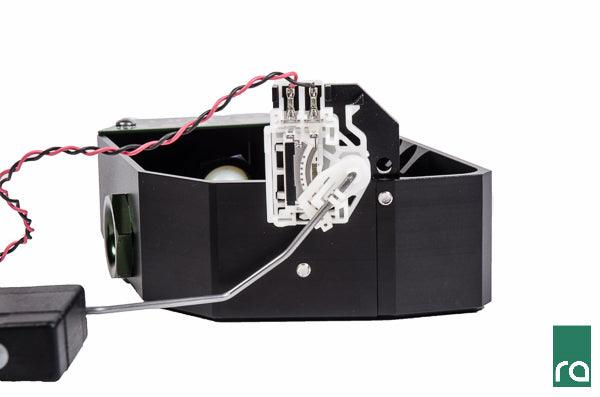

The kit also includes a vehicle-specific contoured billet aluminum collector box. There are two 1" check valve balls incorporated on the tank that serves as trap doors keeping the pump(s) supplied dynamically with fuel during aggressive driving. Furthermore, all returning fuel from the pressure regulator return and the crossover hose enter the collector box through a one-way duckbill valve keeping it full. The duckbill valve prevents back flow and reduces noise from fuel spray. The collector box also permits a mounting solution for the OEM fuel level sender.

Single pump applications (shown above) can reuse the OEM fuel pump controller wiring, but it is recommended to upgrade the wiring as these high flow fuel pumps draw additional current requiring larger gauge wire. Fuel pump wiring kits can be purchased HERE. Select qty1 for single pump applications and qty2 for dual pump applications.


FEATURES

-Anodized Aluminum Laser Etched Plate
-Anodized Aluminum Collector Box and Check Valves
-Anodized Aluminum Venturi Jet Pump
-Anodized Aluminum 8AN Male Outlet Fitting
-Anodized Aluminum 6AN Male Inlet Fitting
-Anodized Aluminum Dual Pump Cradle
-Anodized Aluminum Pump Outlet Fittings
-ETFE Wire with Stainless Steel Terminals
-Fluorosilicone Duckbill Return Valve
-Stainless Steel Hardware and Clamps


OPTIONS

20-0306-0X FUEL HANGER PLUMBING KIT, FR-S/BRZ/86
PLUMBING KIT NOT COMPATIBLE WITH AUTOMATIC TRANSMISSIONS
The fuel hanger plumbing kits convert the OEM returnless system to a traditional return system. They include everything required to connect directly to the OEM or aftermarket fuel rails for both single and dual pump configurations. A -8AN PTFE hose attaches to a Radium Engineering fuel filter that mounts underneath the vehicle using a specifically designed FT86 bolt-on bracket. Depending on the kit selected (-03 or -05), the fuel filter will be assembled with 1 of 2 different elements. Go HERE for more filter element information.

The fuel filter is secured to an inline Radium fuel presssure gauge which is attached to an adjustable Radium fuel pressure regulator. The FPR can be used to mimic the OEM fuel system or it can be ran 1:1 with a vacuum reference. -6AN PTFE hoses are included to connect to the fuel rail and high pressure fuel pump.

INCLUDES
-Filter (-03 Stainless or -05 Microglass)
-Fuel Pressure Regulator
-Fuel Pressure Gauge
-Heat Exchanger Filter Mount
-Aluminum FT86 Filter Bracket
-SAE Quick Connects
-Aluminum Adapter Fittings
-8AN and -6AN PTFE Fuel Hoses
-6AN PushLok Hose Ends
-3/8" Fuel Return Hose
-Stainless and Aluminum Hardware
