Dynamic Safety Vent (DSV) Valves

Regular price $46.55

Dynamic Safety Vent (DSV) Valves |



Radium Engineering Dynamic Safety Vent (DSV) valves feature advanced tank venting and roll-over protection for fuel cells and gas tanks. The Radium Engineering DSV valves come in different varieties for all fill type applications; standard fill and quick-fill. Simply put, the larger the vent, the quicker the fuel cell can be filled. NOTE: Be sure to lubricate the Viton O-ring prior to installing either DSV valve.


FEATURES
Fuel Tank Venting

Once the tank is filled with fuel, the upper sealing ball valve floats to the top of the internal DSV chamber shutting off the air source. This safely prevents fuel from traveling up and out of the fuel cell vent line.

Roll Over Protection
In case of an accident in which the wheels are up-ended, the lower stainless steel ball holds the ball valve down sealing the vent. This safely prevents fuel from leaking out of the fuel cell vent line.

Notes

1. DSV and filler height relationship: The vertical height of the top (shut-off) ball in the dynamic safety valve should be positioned lower than the highest point of the fuel fill point.
2. Filler and vent height relationship: The vertical height of at least one portion of the vent tubing (not included) should be positioned above the highest point of the fuel fill point.


STANDARD FILL DSV

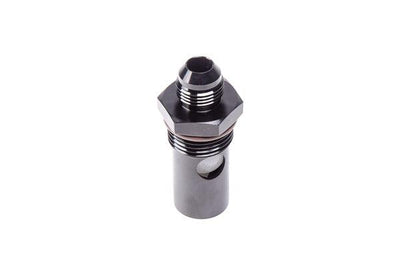

20-0435 DSV, 12AN ORB TO 8AN MALE, STD FILL
This compact internal DSV valve can be used for fuel tanks that have -12AN ORB female threads. The external -8AN male fitting is used for all standard fuel filling. The 1-piece machined part is manufactured from billet 6061 aluminum and type-II anodized. Included are 2 ball valves, FKM Viton O-ring, and a stainless steel retaining ring. These materials are compatible with all fuel types including alcohol fuels such as methanol and E85. It can easily be disassembled for quick cleaning, inspection, and maintenance. NOTE: This DSV comes standard on the Radium 20-049X-XX FCST.


QUICK FILL DSV

20-0535 DSV, 12AN ORB TO 12AN MALE, QUICK FILL, INTERNAL
This internal DSV valve can be used for fuel tanks that have -12AN ORB female threads (including the Radium 20-049X-XX FCST). The high flowing -12AN male fitting permits dry break applications that use dump cans for quick fuel filling. The 1-piece machined part is manufactured from billet 6061 aluminum and type-II anodized. Included are 2 ball valves, FKM Viton O-ring, and a stainless steel retaining ring. These materials are compatible with all fuel types including alcohol fuels such as methanol and E85. It can easily be disassembled for quick cleaning, inspection, and maintenance.

Note: This internally mounted DSV is perfect for pressureless "vented" dry break receivers such as Radium Engineering 20-0495-V, 20-0504-V, and 20-0549-V.


FUEL LEVEL ADAPTER
20-0439 12AN ORB to 5-Bolt SAE Adapter
To use a Radium Engineering DSV on an old FCST that has 8AN ORB vent threads (20-014X-XX), this adapter can be used.

However, a fuel level sender cannot be used with this adapter in place.


REMOTE FITTING
14-0434 12AN ORB TO 12AN MALE
This would be used if the external quick fill DSV needs to be remotely mounted off the fuel cell. It will secure directly into the 12AN ORB Vent Port on the 20-049X-XX FCST.

Or it can be used in conjunction with 20-0439 12AN ORB to 5-Bolt SAE Adapter for older FCST units.
