Catch Can Kit, Ford F150 Raptor

Regular price $213.70

Catch Can Kit, Ford F150 Raptor |

Click here to download installation instructions (PDF)

This kit is compatible with the EcoBoost powered Ford Raptor and 2015+ F-150 EcoBoost V6 (4WD and 2WD).

The Radium Engineering catch cans are the most functional and integrated kits on the market. The catch cans mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and CCV side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required. For more information on Radium catch cans, CLICK HERE.

The 20-0481 Catch Can Kit, PCV, Ford F150 Raptor secures to the firewall with no modifications required. This catch can runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: No inline check valve is required since Radium catch cans are pressure sealed. This means a direct intake manifold connection is permitted.

The 20-0482 Catch Can Kit, CCV, Ford F150 Raptor secures to the firewall with no modifications required. This catch can runs inline with the crankcase vent port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this line will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.

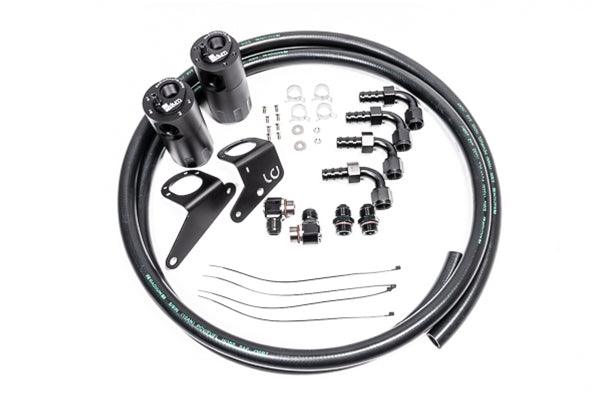

For the ultimate in engine protection, Radium recommends 20-0483 Dual Catch Can Kit, Ford F150 Raptor. This kit utilizes both the "CCV" and "PCV" catch can kits detailed above. A shim is included to allow the PCV mounting bracket to sit right over the CCV mounting bracket.

Each kit features the following:
-Anodized oil catch can with integrated condenser and dipstick
-Anodized aluminum F150 Raptor specific mounting bracket
-Anodized aluminum -AN adapter fittings and hose ends
-Stainless steel mounting hardware


Petcock Drain Kit
-4AN ORB to barb fitting
-Nylon 1/4" barb ball valve
-PCV Compliant Rubber Hose

This kit can be used to remotely drain the catch cans without the need to unscrew the canister body.
