Vendor:Radium Engineering

10AN Male Press-In Fittings, Toyota Valve Covers

SKU: RAD20-0408

Selection
Selection: 1JZ/2JZ Intake Excluding 2JZ-GE VVT-i
$59.95
From Shawn: Not sure this product is right for your build? Email me at service@tunedbyshawn.com before you order. I answer these myself.

ECUs always ship FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description


Click here to download installation instructions (PDF)

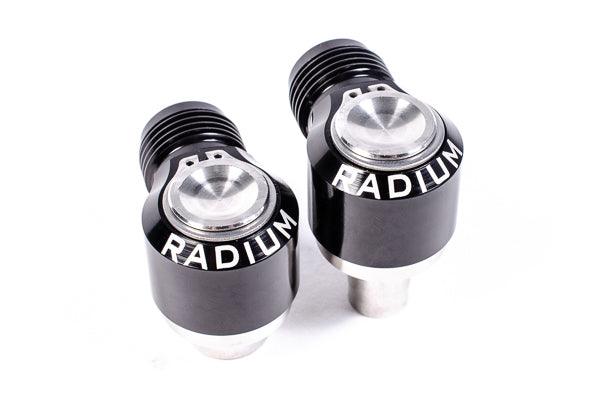

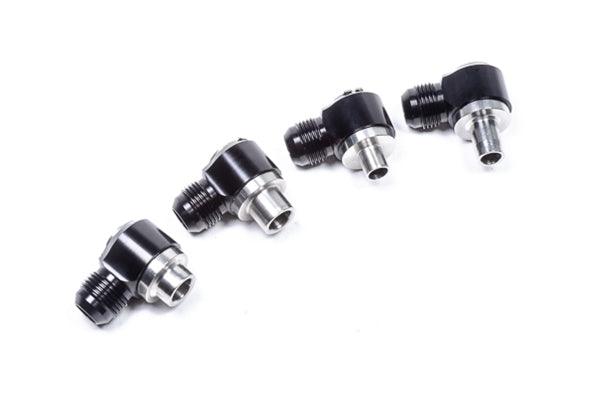

Radium Engineering 10AN low profile swivel fittings simply press-in. No drilling or welding required.

FEATURES
-Stainless/Aluminum Construction
-Low Profile 10AN Male Fitting
-Anodized and Laser Engraved
-Swivel Action with Viton O-Rings
-Simple Press-Fit Installation

Refer to the table below for fitment information with popular Toyota engines. If an engine is not listed, fitment information has never been confirmed.

20-0409

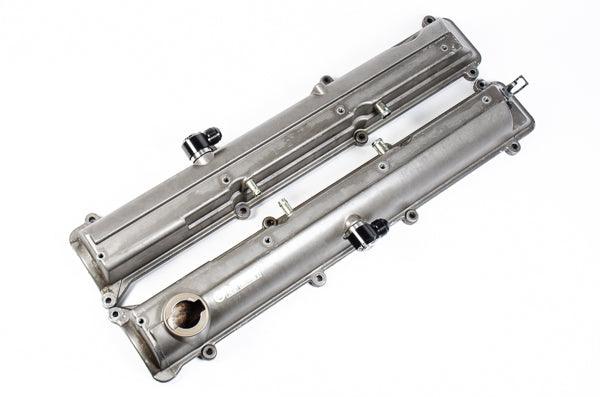

This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover for the following engines:
Toyota 2JZ-GTE VVT-i
Toyota 2JZ-GTE Non VVT-i
Toyota 2JZ-GE VVT-i
Toyota 2JZ-GE Non VVT-i



20-0509
This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover for the following engine:
Toyota 1JZ-GTE VVT-i

20-0609
This fitting is a direct replacement for the crankcase vent press-in located on the exhaust side valve cover for the following engine:
Toyota 1JZ-GTE Non VVT-i





20-0408
This fitting is a direct replacement for the PCV valve located on the intake side valve cover for the following engines:
Toyota 1JZ-GTE VVT-i
Toyota 1JZ-GTE Non VVT-i
Toyota 2JZ-GTE VVT-i
Toyota 2JZ-GTE Non VVT-i
Toyota 2JZ-GE Non VVT-i
Toyota 2JZ-GE VVT-i (2000-May 2002 ONLY)

NOTE: 20-0408 will work in many Toyota/Lexus models, some are listed below. If the PCV valve is mounted to the valve cover with rubber grommet P/N: 90480-18001 (shown below), than Radium P/N: 20-0408 will work.

4RUNNER
CAMRY
CARINA 2
CELICA 5S-FE
CELICA 7A-FE
CHASER (excluding 2JZ-GE VVT-i)
COASTER
COROLLA SPRINTER
CORONA FR
CRESSIDA
CRESTA
CROWN (excluding 2JZ-GE VVT-i)
ES300
GS300 (excluding 2JZ-GE VVT-i)
GS430
HIACE S.B.V
HILUX
IS200
IS300 (2000-MAY 2002 ONLY)
LAND CRUISER
LS400
LS430
LX470
MARK 2 BLIT (excluding 2JZ-GE VVT-i)
MR-2 5S-FE
ORIGIN (excluding 2JZ-GE VVT-i)
SC300
SC430
SEQUOIA
SOARER (excluding 2JZ-GE VVT-i)
STARLET
SUPRA 2JZ-GTE
T100
TACOMA 3RZ-FE
TACOMA 2RZ-FE
TUNDRA 2UZ-FE
