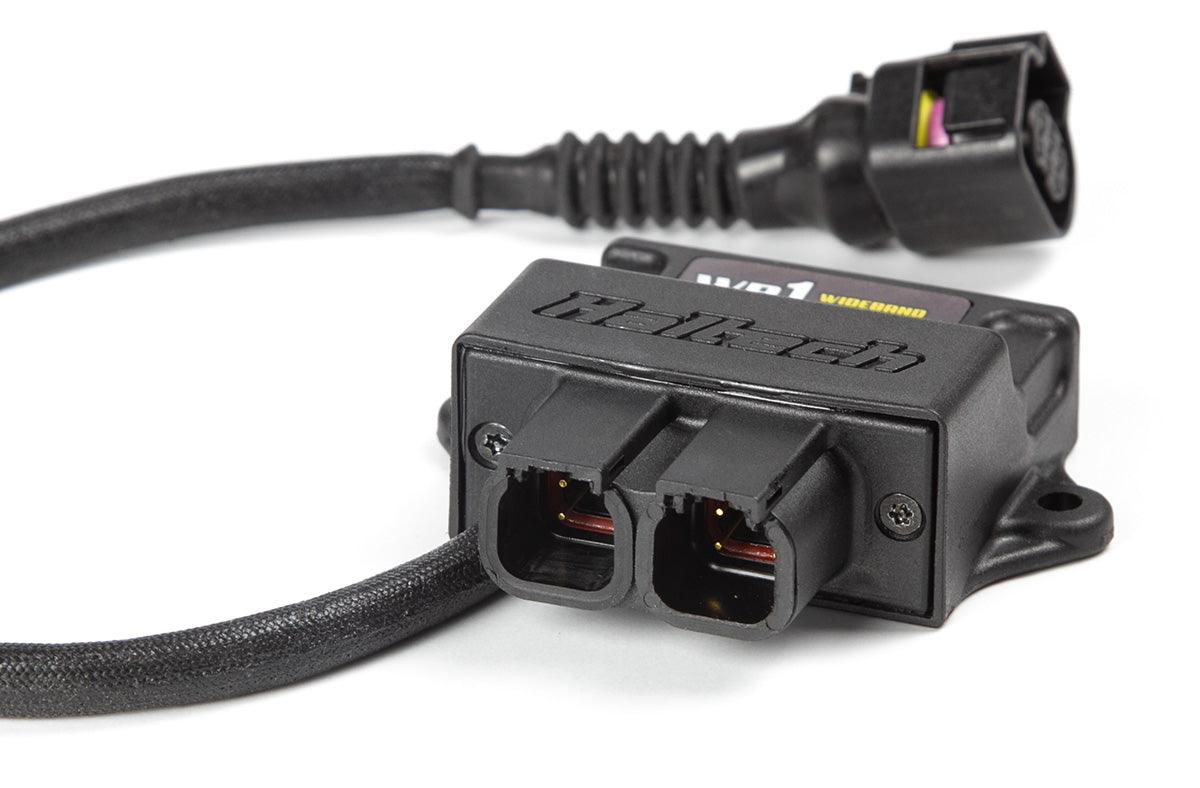

WB1 - Single Channel CAN O2 Wideband Controller Kit
HT-159976 - WB1 - Single Channel CAN O2 Wideband Controller Kit

Vendor:Haltech

WB1 - Single Channel CAN O2 Wideband Controller Kit

SKU: HT-159976

$405.00

Your order always ships FREE with Tuned By Shawn!

Manufacturer Limited Warranty

Product details

Description

OVERVIEW


The Haltech Wideband Controller is a plug and play wideband solution for your Haltech system. It allows users to accurately measure air/fuel ratios over a wide range, and deliver that information via CAN to a supported ECU of their choice. This product increases functionality of all Haltech NEXUS, Elite and Platinum ECUs with its plug and play CAN compatibility. It is easily programmed and controlled through NSP, ESP or ECU Manager software.

Product Specifications:

  • Size 86mm x 77mm x 28mm / 3.39” x 3.03” x 1.10”
  • Sensor Compatibility** Bosch LSU 4.9 or NTK LZA08-H5
  • Supply Voltage 6.5V to 16V DC, Short circuit,reverse polarity protection
  • Supply Current 650mA Typical / 4A Peak
  • Maximum Temperature 85C (185F)
  • Communications CAN (Haltech) with baud rate of 1Mbit/sec
  • Configuration Haltech NSP Software, ESP Software, or ECU Manager
  • CAN Connection 2 x DTM-4 Connectors / 1 x DTM04-6P Connection
